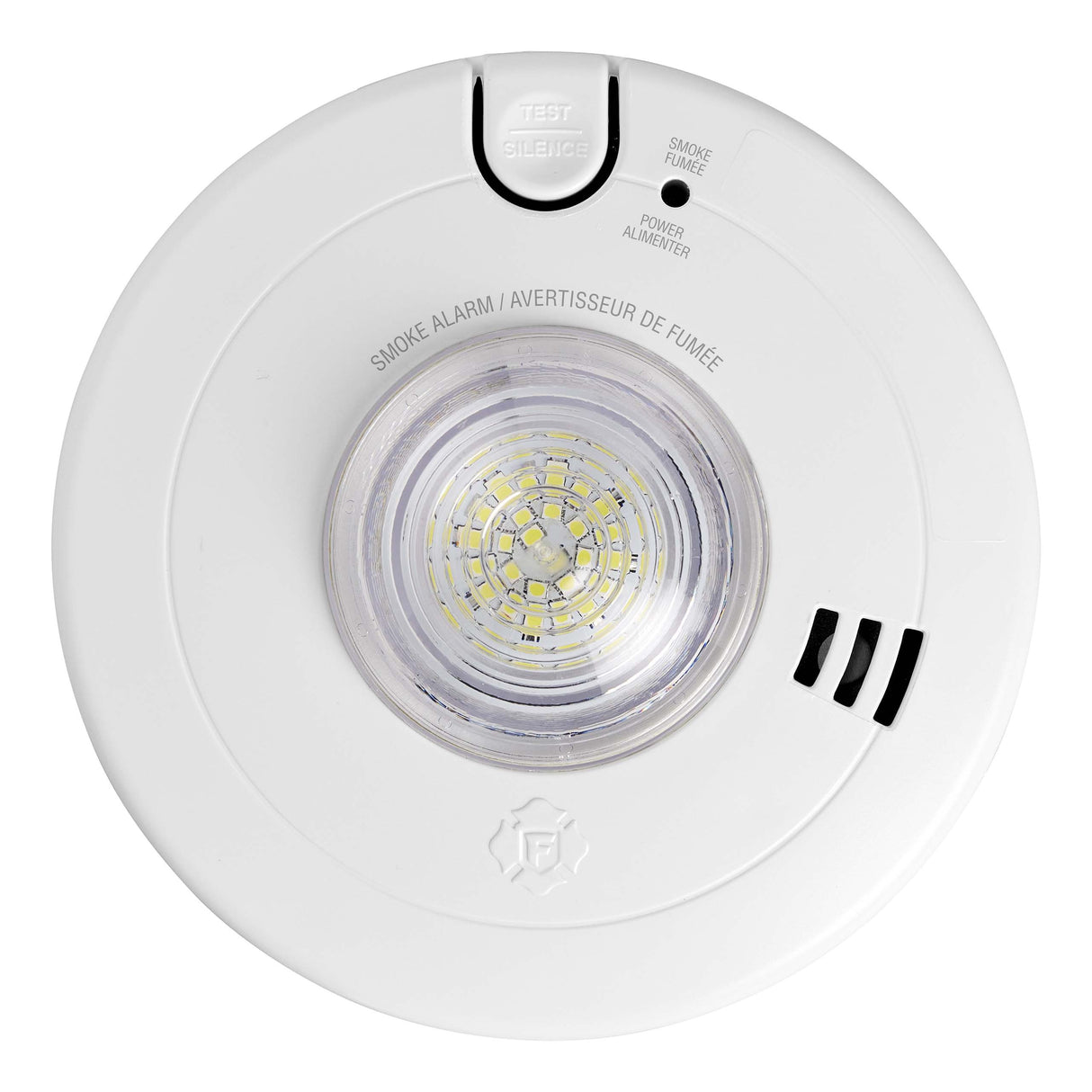

Hardwire Smoke Alarm with LED Strobe

1 5

Hardwire Smoke Alarm with LED Strobe

SKU: 1048354

Integrated hardwired smoke alarm and strobe light features 177 Candela LED strobe to meet ULC S526 standards—ideal for hearing-impaired residents. Multiple BRK units can be interconnected so when one sounds, all strobes flash in unison for maximum safety.

10-year sealed battery backup provides continuous detection during power outages with no battery replacements required
Integrated smoke alarm and strobe light in one device
Powerful LED 177 Candela Strobe light provides effective visual warning for hearing impaired residents
60 flashes per minute rate meets ULC S526 requirements for visual signal devices
Interconnect multiple BRK units so one alarm alerts, strobes flash in unison

Additional Options

Product variants

FIND A REP

RESOURCES |
SPECIFICATIONS |
OVERVIEW |
REPLACEMENT PRODUCTS |
WORKS WITH |
YOU MAY LIKE

Resources

Sell (0)

Install (0)

Specification sheet for SM110LEDA-AC Smoke Alarm with LED Strobe (English) Jan 12, 2025 0.57 MB Download

Specification sheet for SM110LEDA-AC Smoke Alarm with LED Strobe (French) Jan 12, 2025 0.57 MB Download

User Manual for SM110LEDA-AC Smoke Alarm with Strobe Light (English) Oct 12, 2025 1.01 MB Download

User Manual for SM110LEDA-AC Smoke Alarm with Strobe Light (French) Oct 12, 2025 1.04 MB Download

Audio Files (0)

Specifications

BRK Model

SM110LEDA-AC

Type

Smoke Alarm; Strobe

Sensor Type

Photoelectric

Sensor Information

Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.

Sound Level

85dB at 10 feet

Product Height

3.15 in; 80 mm

Product Length

5.3 in; 134 mm

Product Weight

0.66 lb; 0.3 kg

Product Width

5.39 in; 137 mm

Power Source

Hardwired

Alert Type

Sounder; Strobe

Battery Backup

Yes

Backup Battery Type

Lithium

Backup Battery Life

10 years

UPC Number

194160011294

Warranty

10 years Limited

Replaces Model

7020BSLA

Features

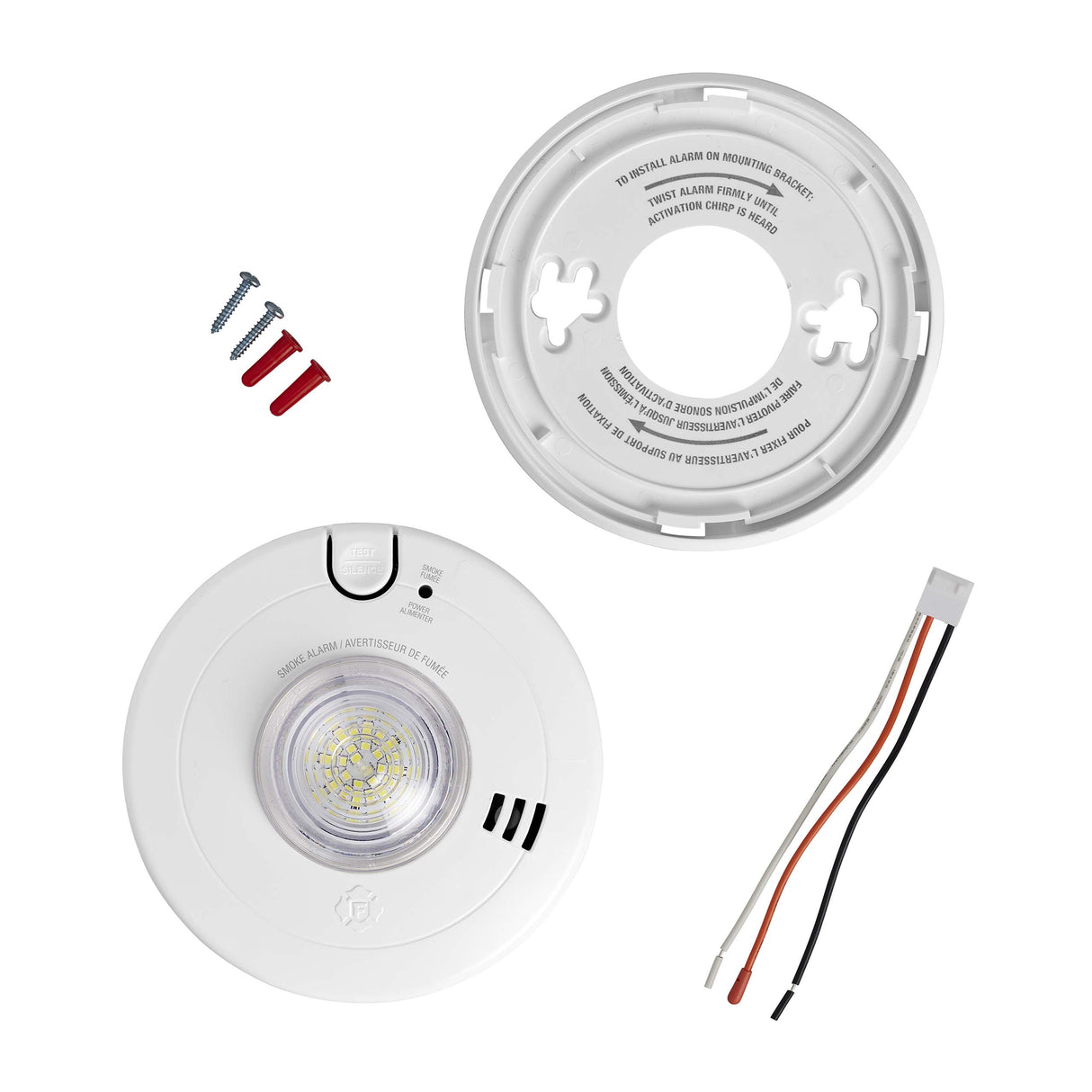

Battery Backup; Hardwire Interconnectivity; Hardwire Quick Connect Plug Included

Approvals and Standards

ULC STD S531 & ULC STD S526
