1039772 Slim Battery Operated Photoelectric Smoke Alarm

SKU: 1039772

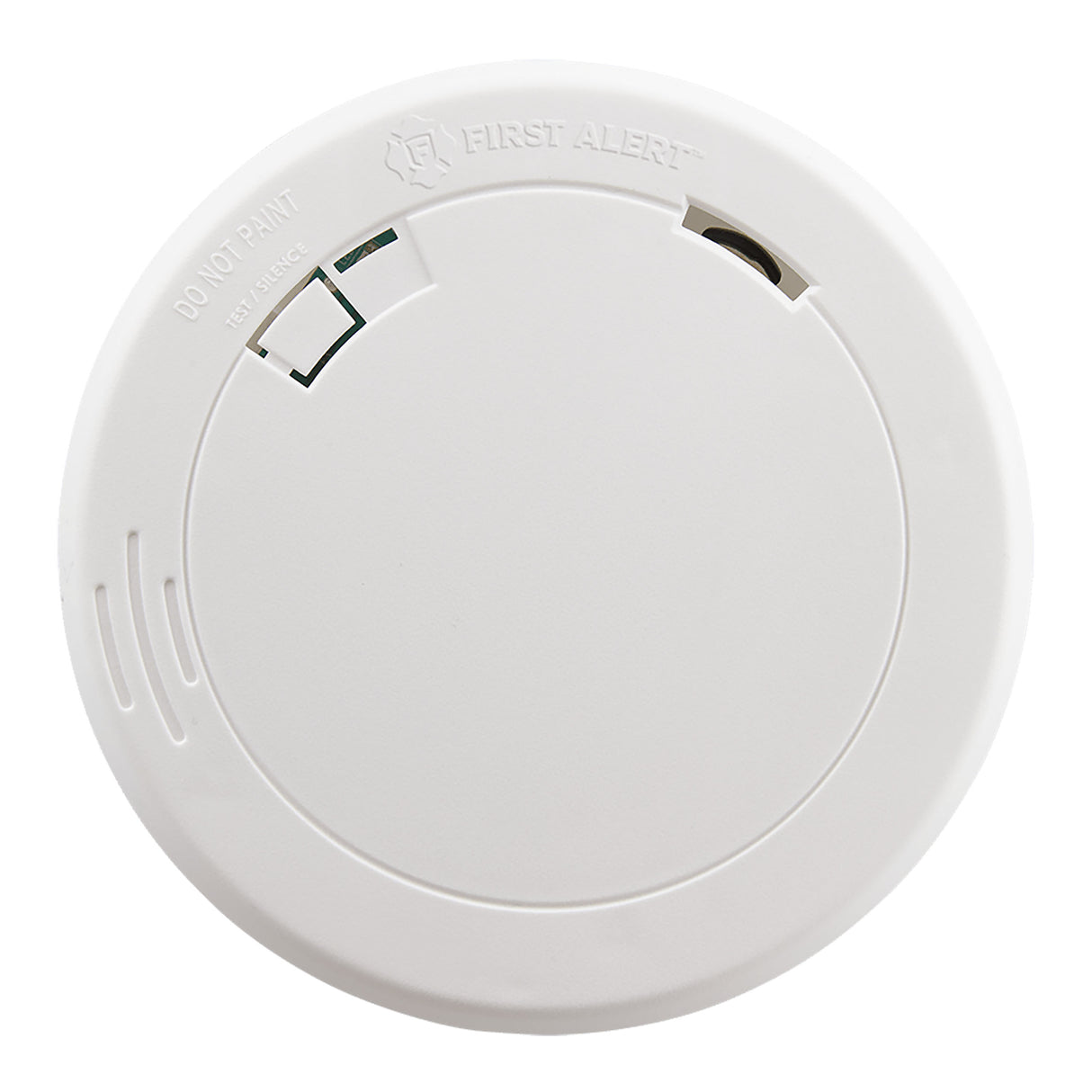

PR700 Slim Battery Operated Photoelectric Smoke Alarm - Front

Roll over image to zoom

Right click on thumbnail to save image

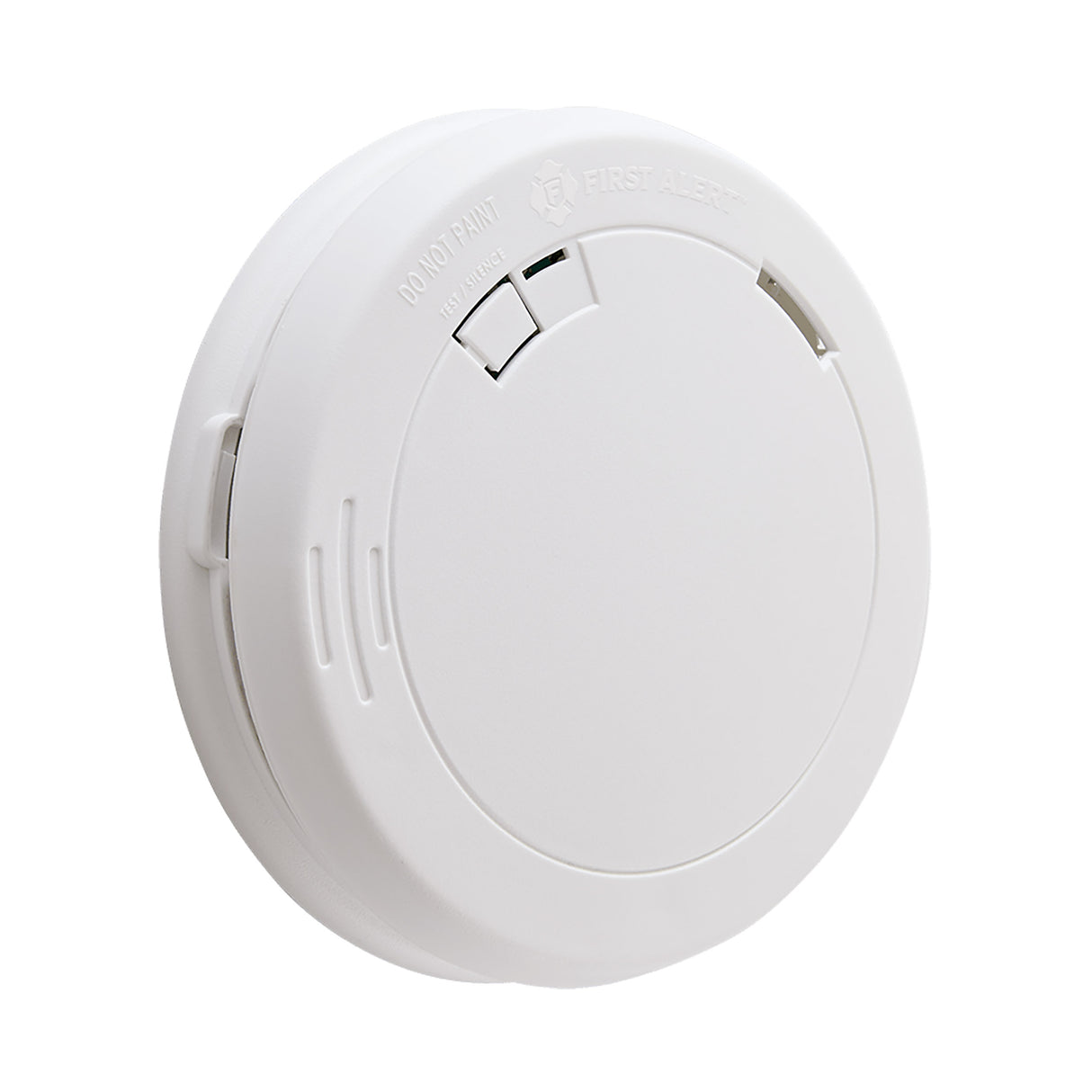

PR700 Slim Battery Operated Photoelectric Smoke Alarm - At an Angle

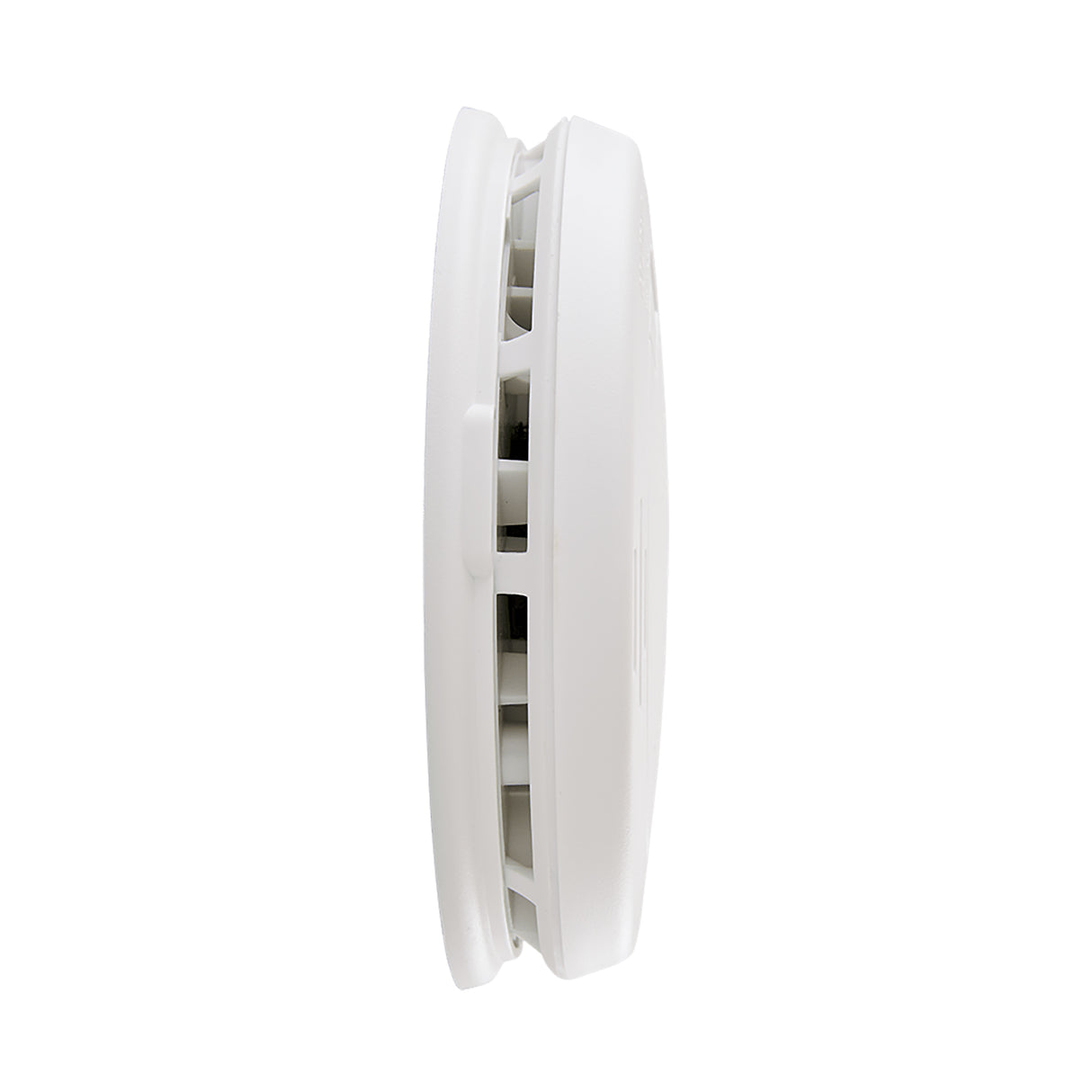

PR700 Slim Battery Operated Photoelectric Smoke Alarm - Slide

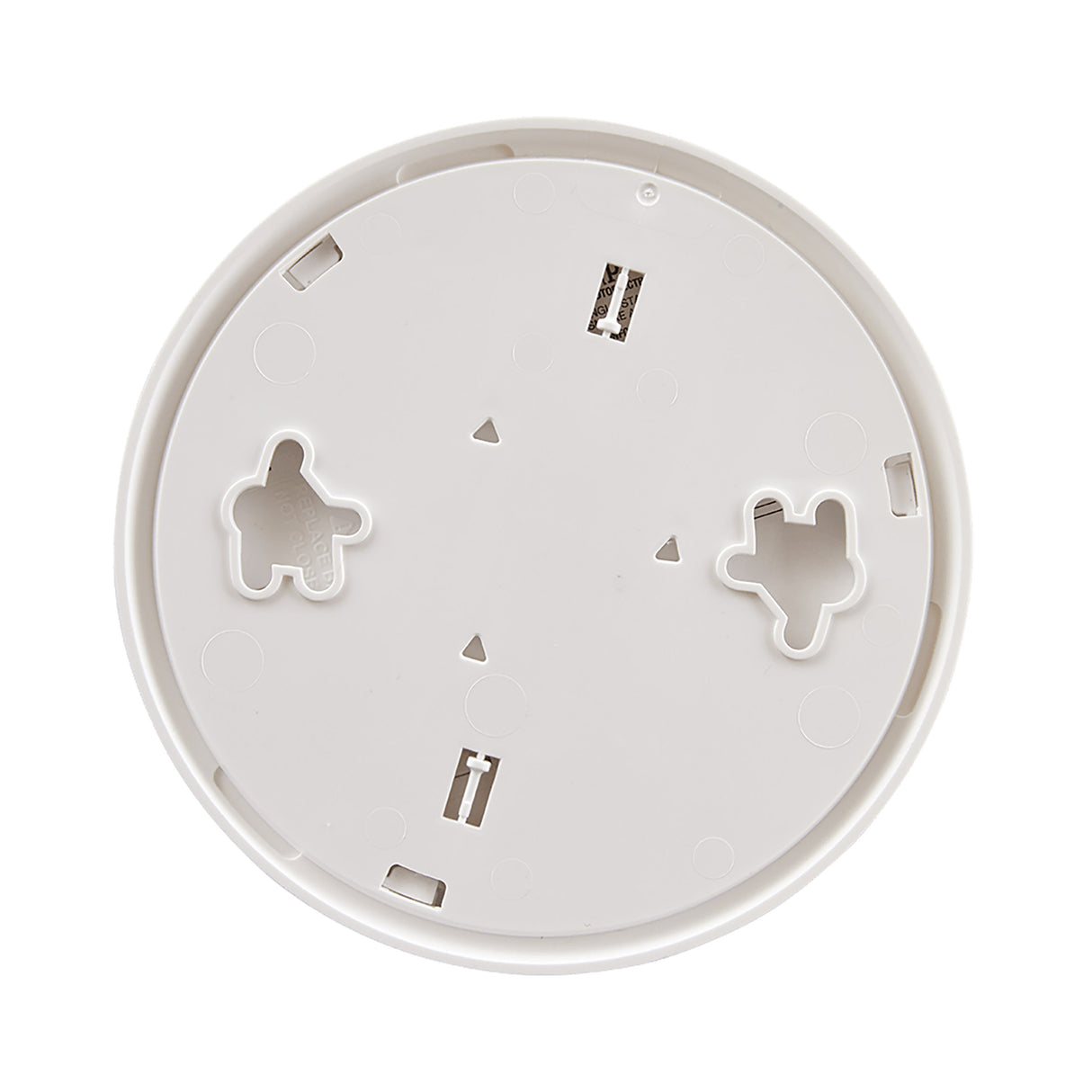

PR700 Slim Battery Operated Photoelectric Smoke Alarm - Back

1039772 Slim Battery Operated Photoelectric Smoke Alarm

SKU: 1039772

Battery powered, low profile, smoke alarm with replaceable battery and silence feature. Includes Photoelectric smoke sensing technology and a 9V Carbon Zinc battery.

Low Profile Design - Sleek, contemporary design blends into any decor
Photoelectric smoke sensing technology
Silence feature
Tamper Resistant-Locks alarm to mounting bracket to prevent removal of battery and/or alarm. Perfect for apartment, dormitory or hotel applications.
Recommended for installation outside areas that are prone to nuisance alarms such as kitchens, bathrooms and utility rooms.

Select a Model:

Find Replacement Products

Find a Rep

Resources


	User Manual for P1200 Smoke Alarm (English, Spanish)	03/2018	2.4MB	Download
	1039772-P1200 Specification Sheet	01/2014	0.4MB	Download
	More Information on Ionization vs. Photoelectric Smoke Alarms	01/2023		Download
No Results found for


	Alarm Sound P1200-1039772	06/2023	0.1MB	Download
	Low Battery Sound P1200-1039772	06/2023	0.0MB	Download
	Supervisory Chirp P1200-1039772	06/2023	0.0MB	Download
	Power Up Indication P1200-1039772	06/2023	0.0MB	Download
No Results found for

Specifications
BRK Model	P1200 - PR700B
Replacement Model	SM200
Type	Smoke Alarm
Sensor Type	Photoelectric
Sensor Information	Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
Sound Level	85dB at 10 feet
Product Height	1.13 in
Product Length	5.2 in
Product Weight	0.38 lb
Product Width	5.2 in
Power Source	Battery Operated
Operating Voltage	9V Battery Powered
Battery Size	9V
Battery Replaceable	Yes
Slim Profile Design	Yes
Number of Batteries	1
Color	White
Ambient Operating Temperature (Min)	40 °F, 4 °C
Ambient Operating Temperature (Max)	100 °F, 38 °C
Operating Relative Humidity (Min)	10% (RH)
Operating Relative Humidity (Max)	95% (RH)
UPC Case	10029054018592
Warranty	10 Years Limited
Features	End-of-Life Warning, Slim Profile Design
Approvals and Standards	Listed to UL217 Standard

View All
