1039828 Ultimate Protection Smoke Alarm, Battery-Powered

SKU: 1039828

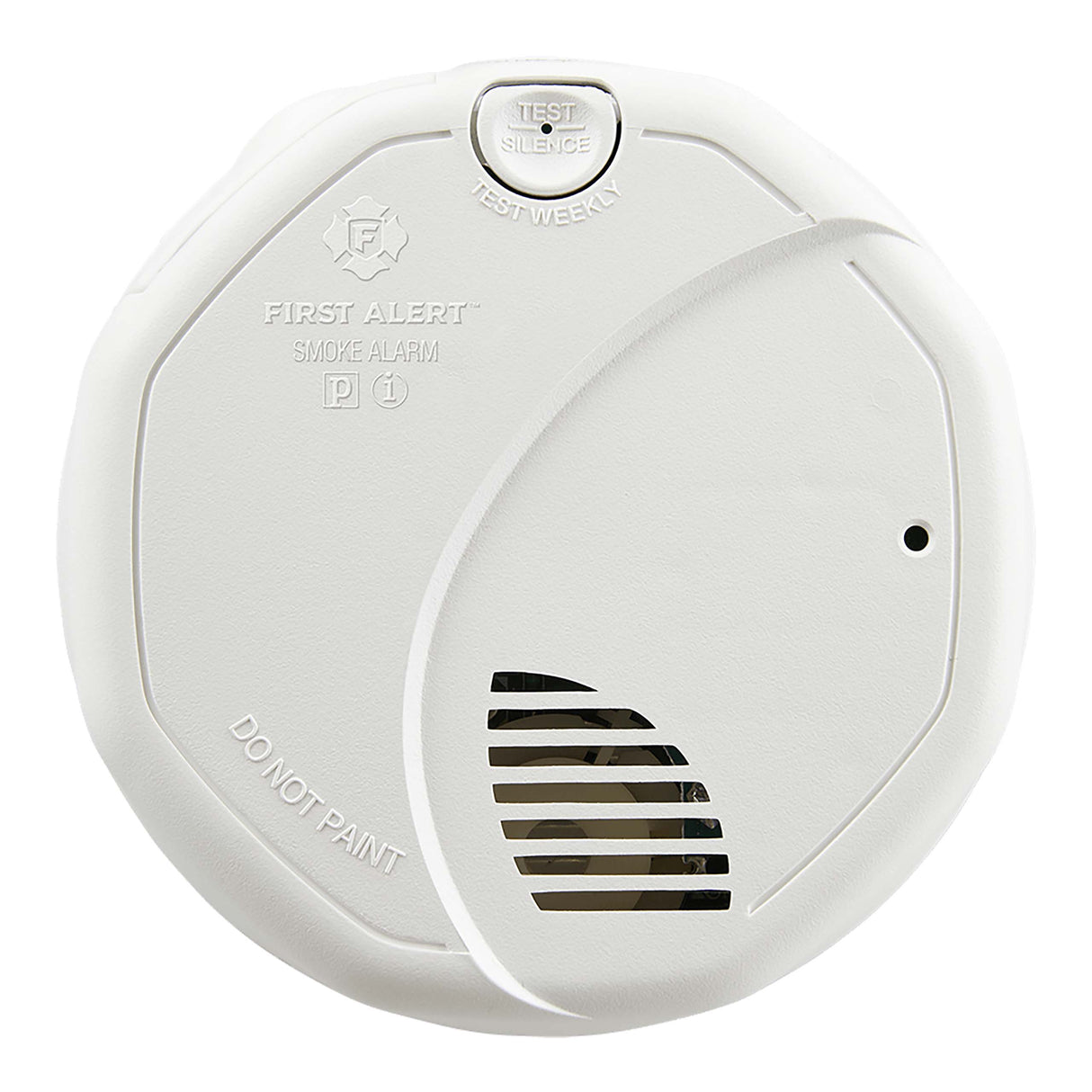

Smoke Alarm front view

Roll over image to zoom

Right click on thumbnail to save image

1039828 Ultimate Protection Smoke Alarm, Battery-Powered

Name: 1039828 - BRK Dual sensor battery powered smoke alarm with replaceable battery. | BRK
SKU: 1039828
Availability: InStock

SKU: 1039828

Battery powered Smoke Alarm with replaceable battery with Silence and Latching features. Includes Photoelectric and Ionization smoke sensing technology and 2 AA Alkaline batteries.

Select a Model:

Find Replacement Products

Find a Rep

Resources


	1039828-SA320 CSFM Listing Card	02/2011	0.2MB	Download
	1039828-SA320 ETL Listing Card	07/2015	0.0MB	Download
No Results found for


	User Manual for SA320 Photo & Ion Smoke Alarm (English, Spanish)	05/2016	1.2MB	Download
	1039828-SA320 Specification Sheet	01/2011	0.2MB	Download
	1039828-SA320 Architect and Engineering Specifications	01/2011	0.1MB	Download
	More Information on Ionization vs. Photoelectric Smoke Alarms	01/2023		Download
No Results found for


	Alarm Sound SA320-1039828	06/2023	0.1MB	Download
	Low Battery Sound SA320-1039828	06/2023	0.0MB	Download
	Supervisory Chirp SA320-1039828	06/2023	0.0MB	Download
	Power Up Indication SA320-1039828	06/2023	0.0MB	Download
	Dissipate Capacitor Sound SA320-1039828	06/2023	0.1MB	Download
No Results found for

Specifications
BRK Model	SA320
Type	Smoke Alarm
Sensor Type	Dual Sensor (Photoelectric and Ionization)
Sensor Information	Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
Sound Level	85dB at 10 feet
Product Height	2 in
Product Length	5 in
Product Weight	0.9 lb
Product Width	5 in
Power Source	Battery Operated
Operating Voltage	Two 1.5V AA alkaline batteries
Wireless Interconnectivity	No
Battery Type	Alkaline
Battery Size	AA
Battery Replaceable	Yes
Number of Batteries	2
Color	White
Ambient Operating Temperature (Min)	40 °F, 4 °C
Ambient Operating Temperature (Max)	100 °F, 38 °C
Operating Relative Humidity (Min)	10% (RH)
Operating Relative Humidity (Max)	95% (RH)
Easy Access Battery Compartment	Yes
UPC Case	20029054018957
Warranty	10 Years Limited
Features	Easy Access Battery Compartment
Approvals and Standards	Listed to UL217 Standard

View All

Product Overview

Utilizes both ionization and photoelectric smoke sensors for maximum protection
Two Latching Features - Alarm Latch and Low Battery Latch
Two Silence Features - Alarm Silence and Low Battery Silence
Two AA Battery Powered
Optipath 360 Technology
Meets codes for Iowa, Massachusetts and other areas that require battery powered Photoelectric and Ionization smoke sensing technologies.
