7010B BRK 120V AC/DC Photo Smoke Alarm

Discontinued

1 21

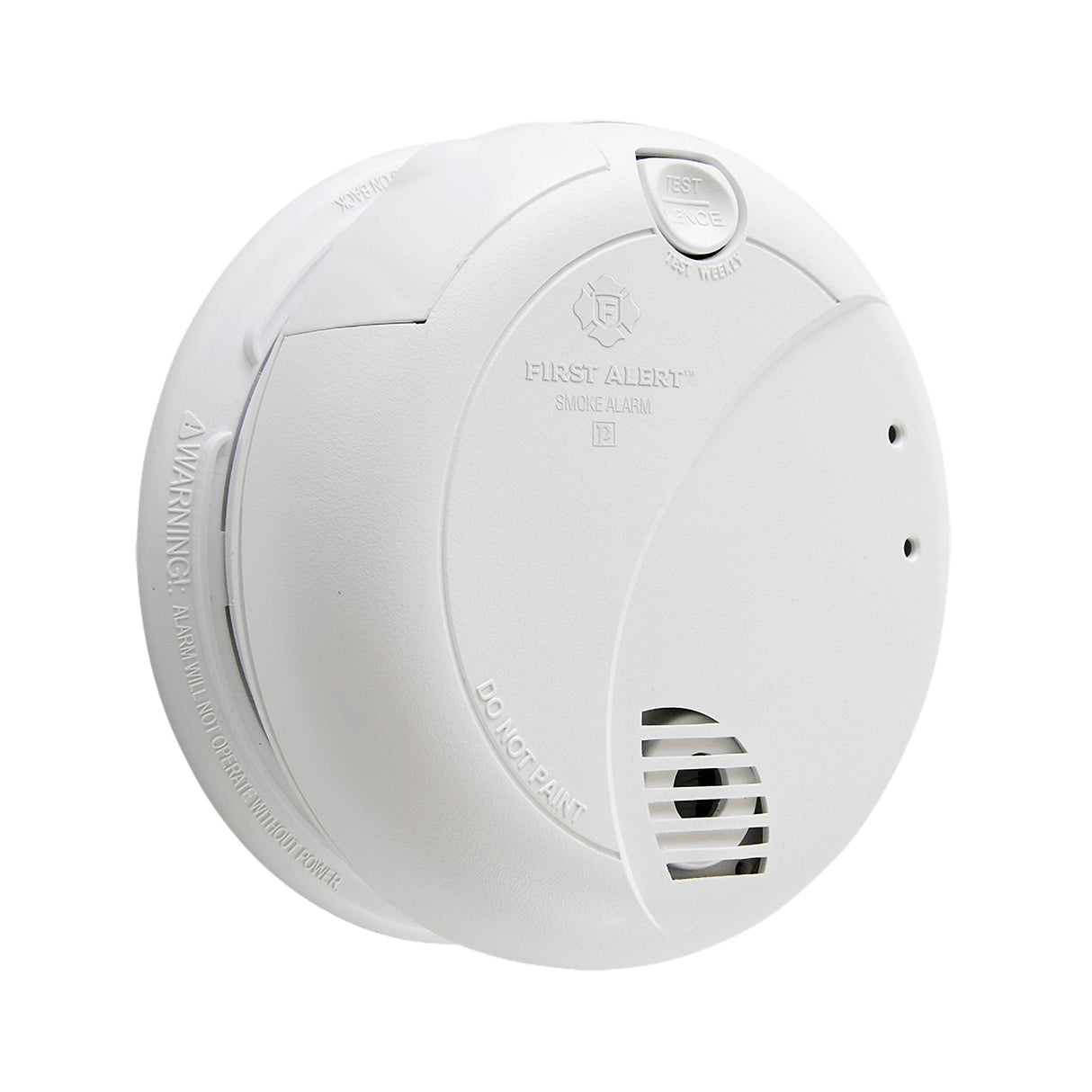

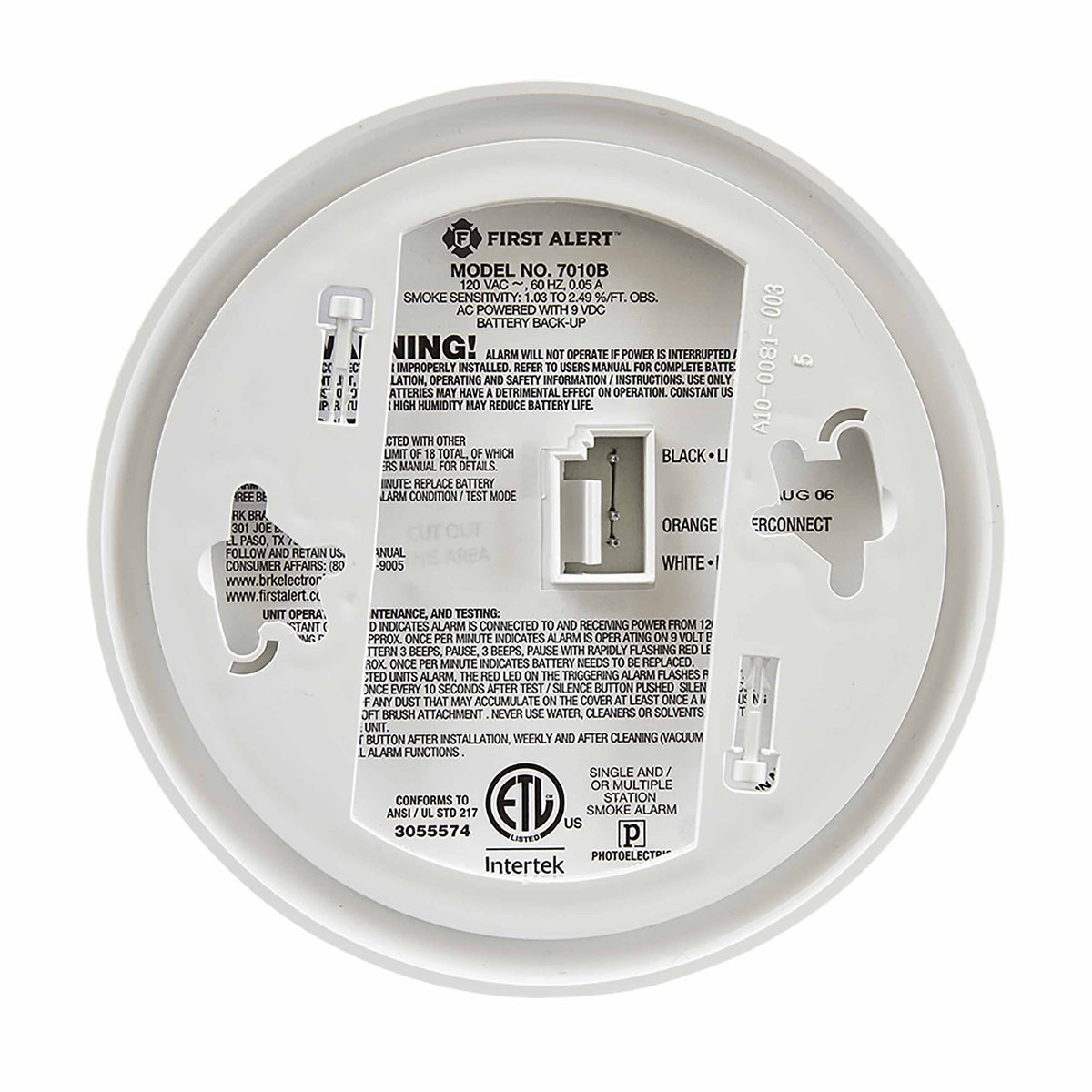

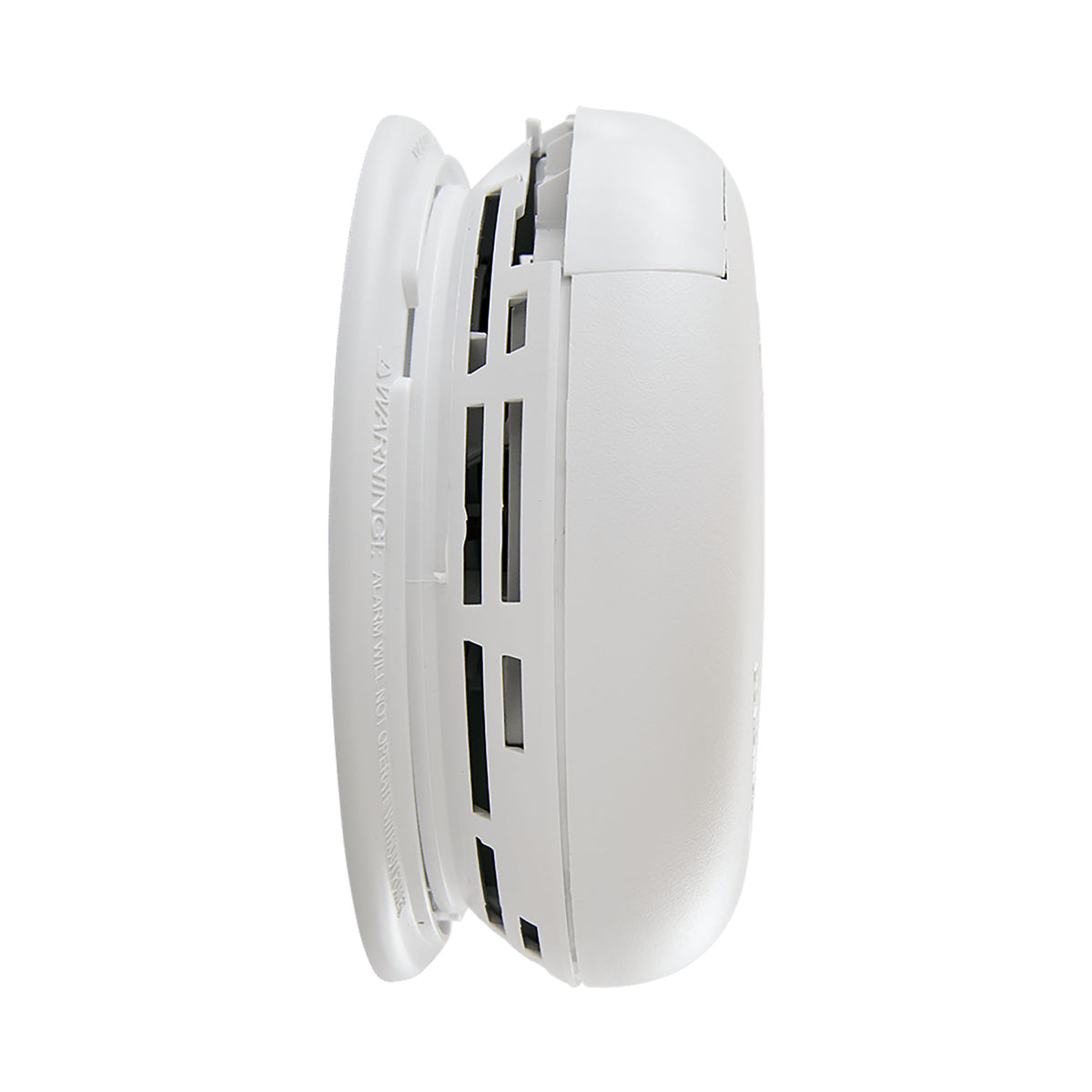

7010B BRK 120V AC/DC Photo Smoke Alarm

Name: 7010B - BRK Photoelectric hardwired smoke alarm with replaceable battery backup. | BRK
Brand: Brkelectronics

SKU: 7010B

Hardwired smoke alarm with replaceable battery backup. AC 120V Interconnectable with Silence and Latching features. Includes Photoelectric smoke sensing technology and a 9V Carbon Zinc battery.

Additional Options

Product variants

View Replacement Products

RESOURCES |
SPECIFICATIONS |
OVERVIEW |
REPLACEMENT PRODUCTS |
WORKS WITH |
YOU MAY LIKE
ACCESSORIES |

Resources

Sell (0)

7010B CSFM Listing Card 06/2008 0.05 MB Download

7010B ETL Listing Card 06/2010 0.12 MB Download

7010B Maryland Fire Marshall Listing Card 06/2008 0.05 MB Download

7010B UL Listing Card 07/2008 0.03 MB Download

Install (0)

User Manual for 7010B, 7020B Smoke Alarm (English, Spanish) 11/2015 1.39 MB Download

7010B Architect and Engineering Specifications 0.09 MB Download

7010B Specification Sheet (English) 03/2015 0.92 MB Download

More Information on Ionization vs. Photoelectric Smoke Alarms 01/2023 - Download

Audio Files (0)

Smoke Alarm - Alarm Sound 06/2023 0.11 MB Download

Power Up Indication 06/2023 0.02 MB Download

Supervisory Chirp 06/2023 0.02 MB Download

Training (0)

Specifications

BRK Model

7010B

Replacement Model

SM100V-AC

Type

Smoke Alarm

Sensor Type

Photoelectric

Sensor Information

Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.

Sound Level

85dB at 10 feet

Product Height

1.9 in

Product Length

5 in

Product Width

5 in

Product Weight

0.7 lb

Power Source

Hardwired

Operating Voltage

120V AC 60Hz w/ 9V battery backup

Hardwired Interconnectivity

Yes

Battery Replaceable

Yes

Battery Backup

Yes

Backup Battery Type

Carbon Zinc

Backup Battery Size

Number of Batteries

Color

White

Includes

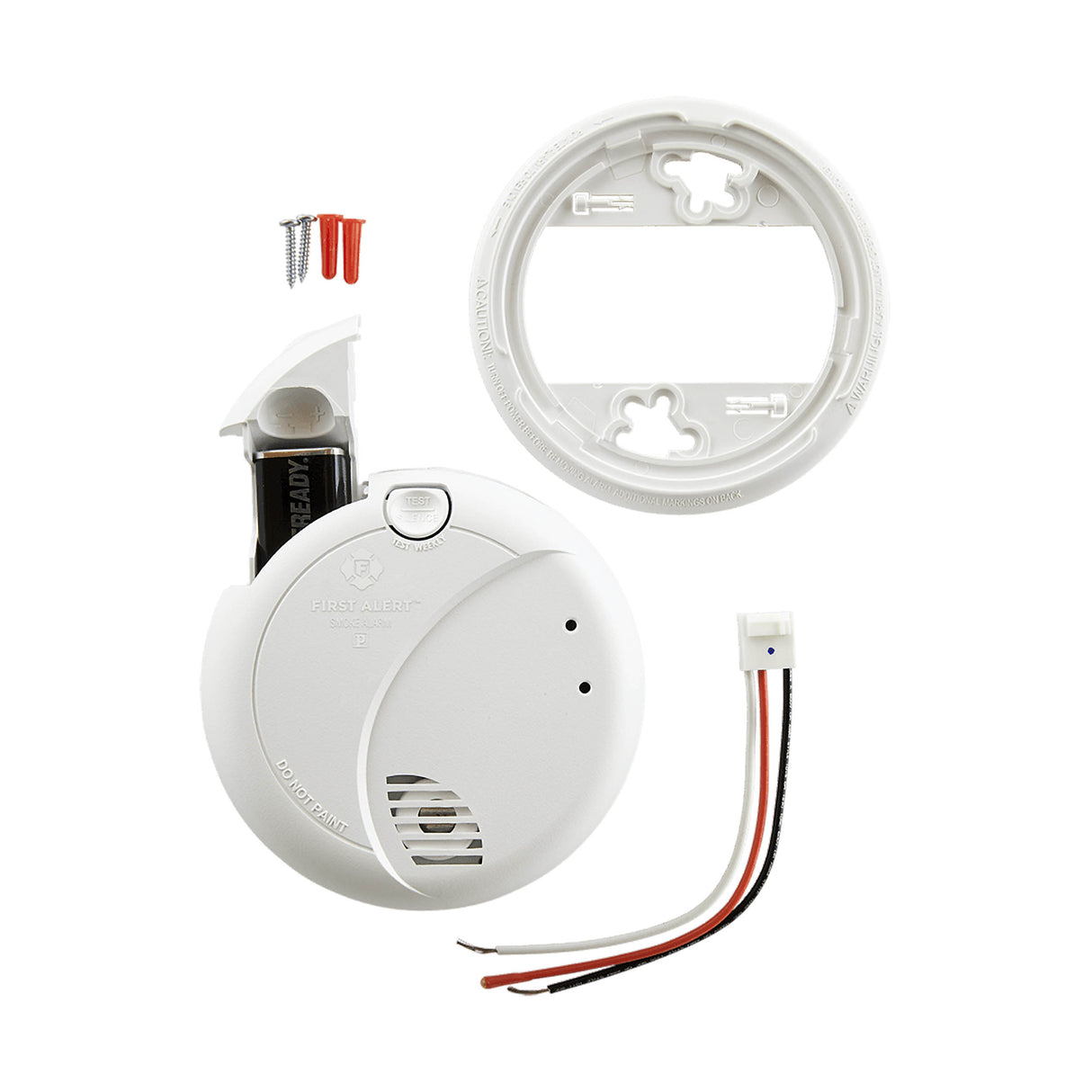

Hardwire Adaptor Plug; Universal Mounting Bracket

Ambient Operating Temperature (Min)

40 °F; 4 °C

Ambient Operating Temperature (Max)

100 °F; 38 °C

Operating Relative Humidity (Min)

10% (RH)

Operating Relative Humidity (Max)

95% (RH)

UPC Case

10029054112016

UPC Number

029054112019

Warranty

10 Years Limited

Features

Battery Backup; Hardwire Quick Connect Plug Included

Approvals and Standards

Listed to UL217 Standard

Product Overview

Recommandé pour une installation à l’extérieur des zones sujettes aux fausses alarmes, telles que les cuisines, les salles de bains et les buanderies.
Test/silence à bouton unique
Alimentation de secours par pile 9 V
Technologie Optipath 360™ : cette technologie brevetée offre un accès direct à 360 degrés au détecteur de fumée.
Fixation parfaite – permet un alignement facile de l’alarme
