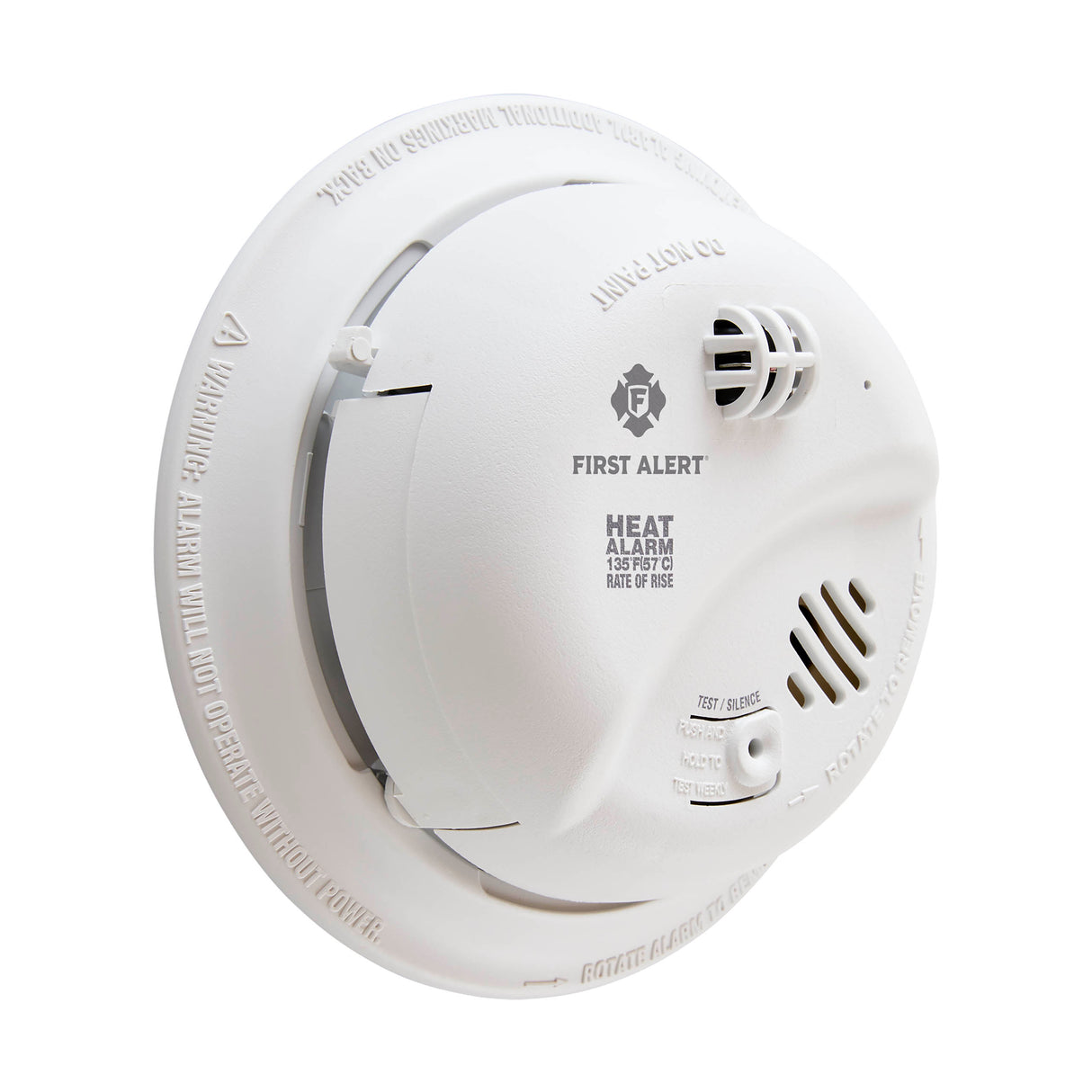

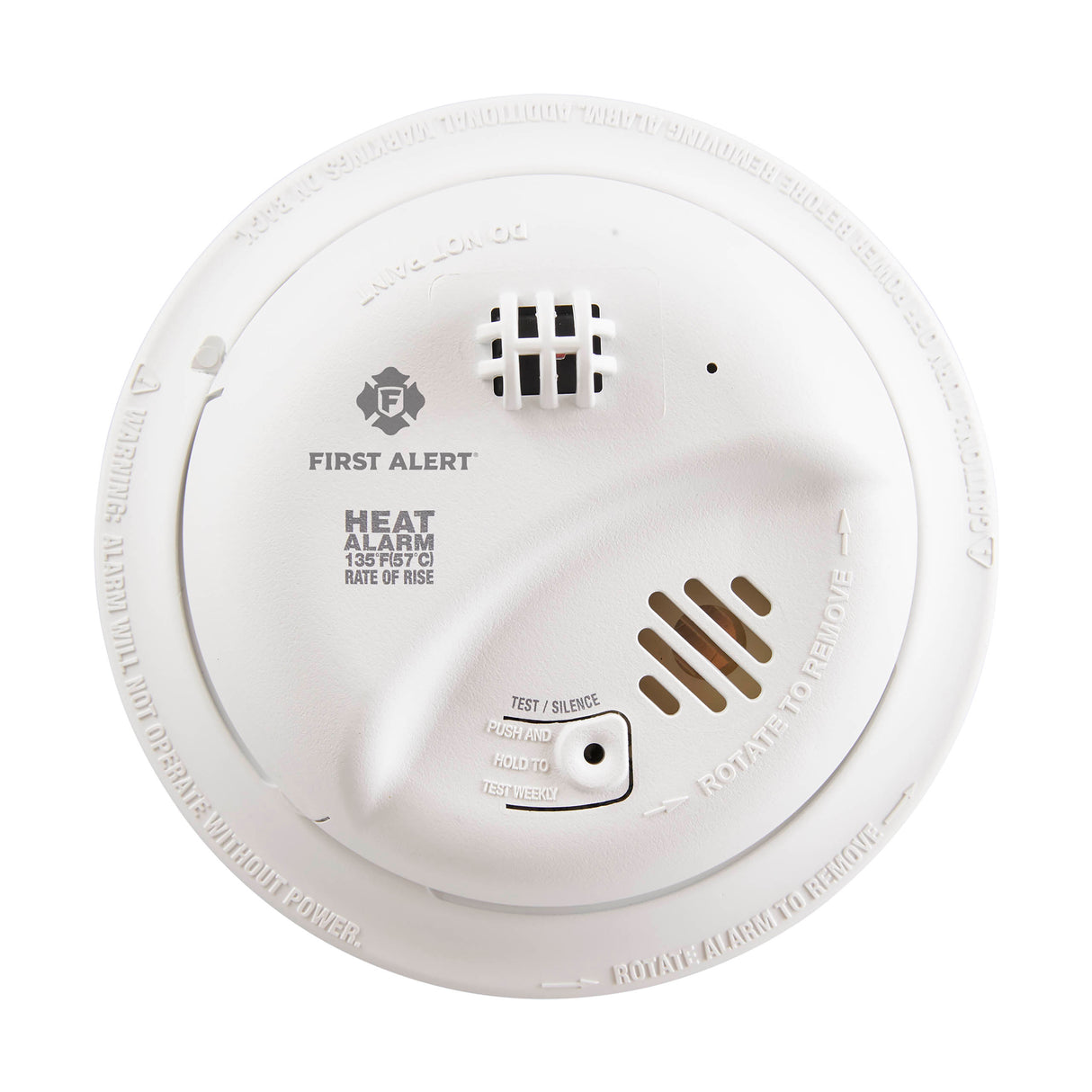

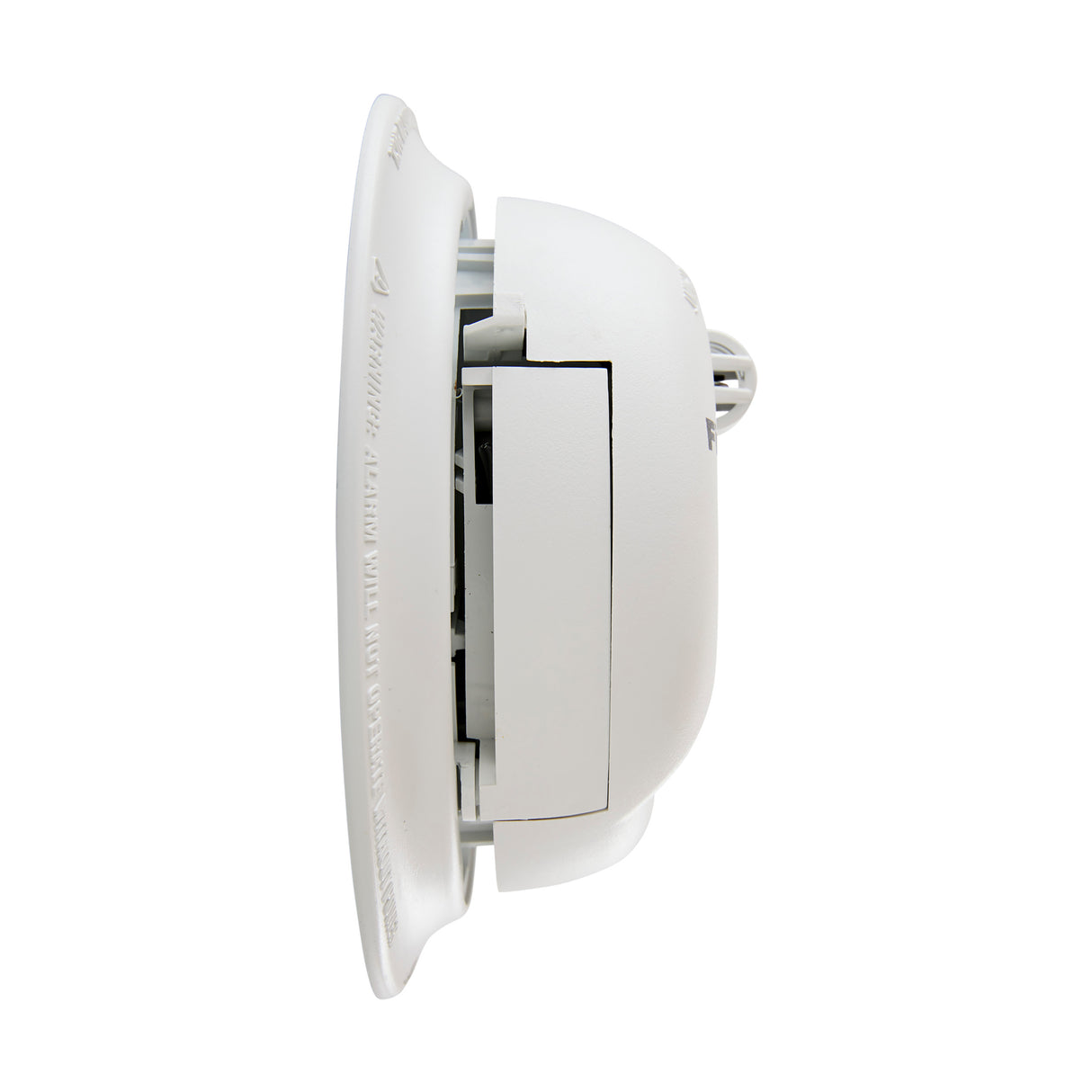

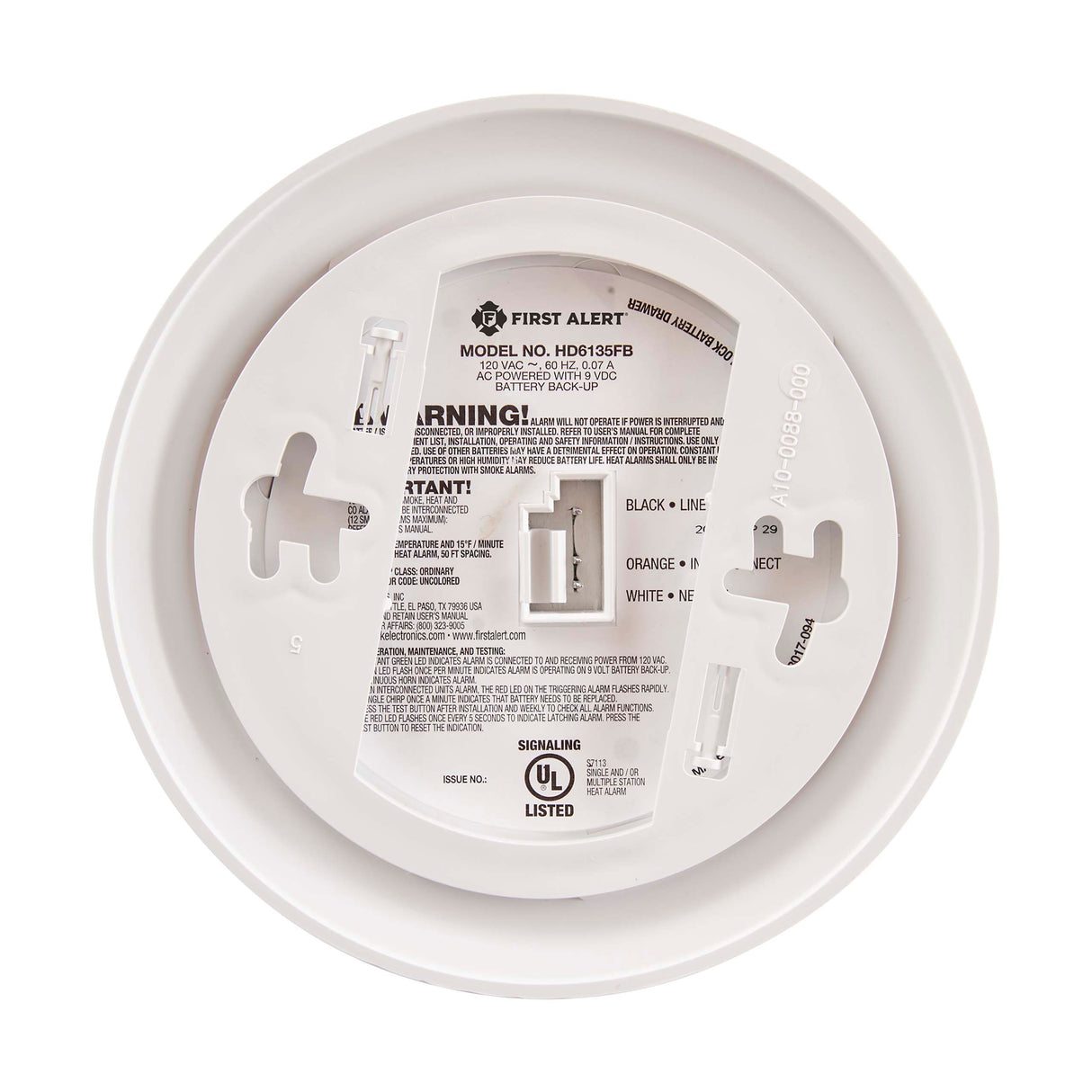

HD6135FB BRK 120V AC/DC 135 °F w/Rate-of-Rise Heat Alarm

1 7

HD6135FB BRK 120V AC/DC 135 °F w/Rate-of-Rise Heat Alarm

SKU: HD6135FB

Hardwired Heat alarm with replaceable battery backup. AC 120V Interconnectable with Silence feature. Includes thermistor, microprocessor and 9V battery.

135°F Fixed temperature and Rate-of-Rise
Thermistor heat sensor
9V Battery Backup
Latching alarm indicator - remembers which unit initiated an alarm
Two silence features - can silence the low-battery chirp for up to eight hours or temporarily silence an unwanted nuisance alarm
Features advanced rate-of-rise technology found in more expensive commercial/industrial alarms at an economical cost.

Additional Options

Product variants

FIND A REP

RESOURCES |
SPECIFICATIONS |
OVERVIEW |
REPLACEMENT PRODUCTS |
WORKS WITH |
YOU MAY LIKE

Resources

Sell (0)

Install (0)

HD6135FB User Manual Nov 10, 2022 1.33 MB Download

HD6135FB Spanish User Manual Nov 10, 2022 1.33 MB Download

HD6135FB Specification Sheet Nov 10, 2022 0.61 MB Download

Audio Files (0)

Specifications

BRK Model

HD6135FB

Type

Heat Alarm

Sensor Type

Thermistor

Sound Level

85dB at 10 feet

Product Height

5.65 in

Product Length

2.42 in

Product Weight

0.6 lb

Product Width

5.59 in

Power Source

Hardwired

Operating Voltage

120V AC 60Hz w/ 9V alkaline battery backup

Hardwired Interconnectivity

Yes

Wireless Interconnectivity

No

Battery Replaceable

Yes

Battery Backup

Yes

Backup Battery Type

Alkaline

Backup Battery Size

9V

Color

White

Ambient Operating Temperature (Min)

-10 °F; -23 °C

Ambient Operating Temperature (Max)

100 °F; 38 °C

UPC Case

10029054508109

UPC Number

029054508102

Warranty

10 Years Limited

Approvals and Standards

Listed to UL 539 Standard
