Alarms / Smoke Alarms / 7020BSL 120V AC with 10-Year Sealed Lithium Battery Backup
Discontinued
1 7

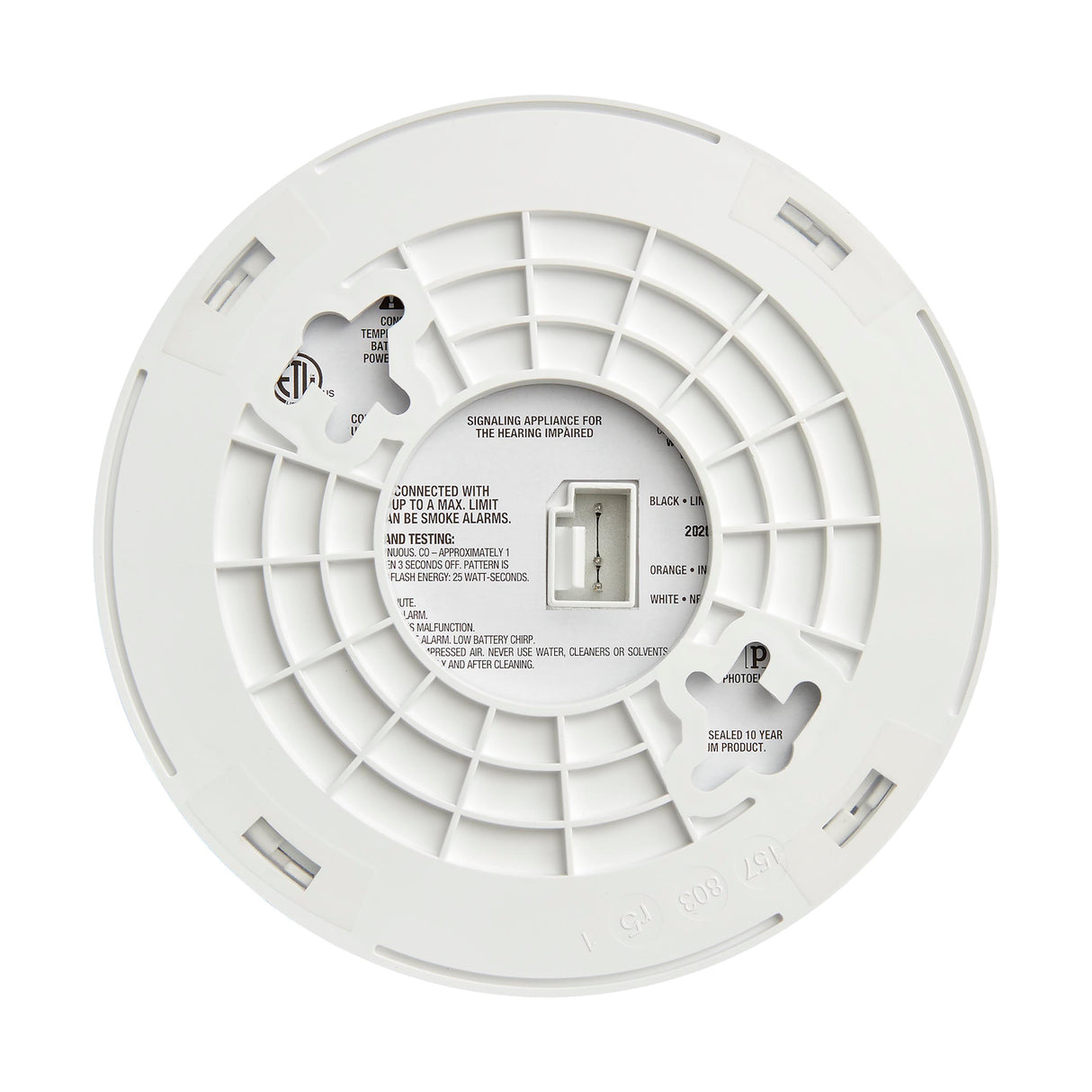

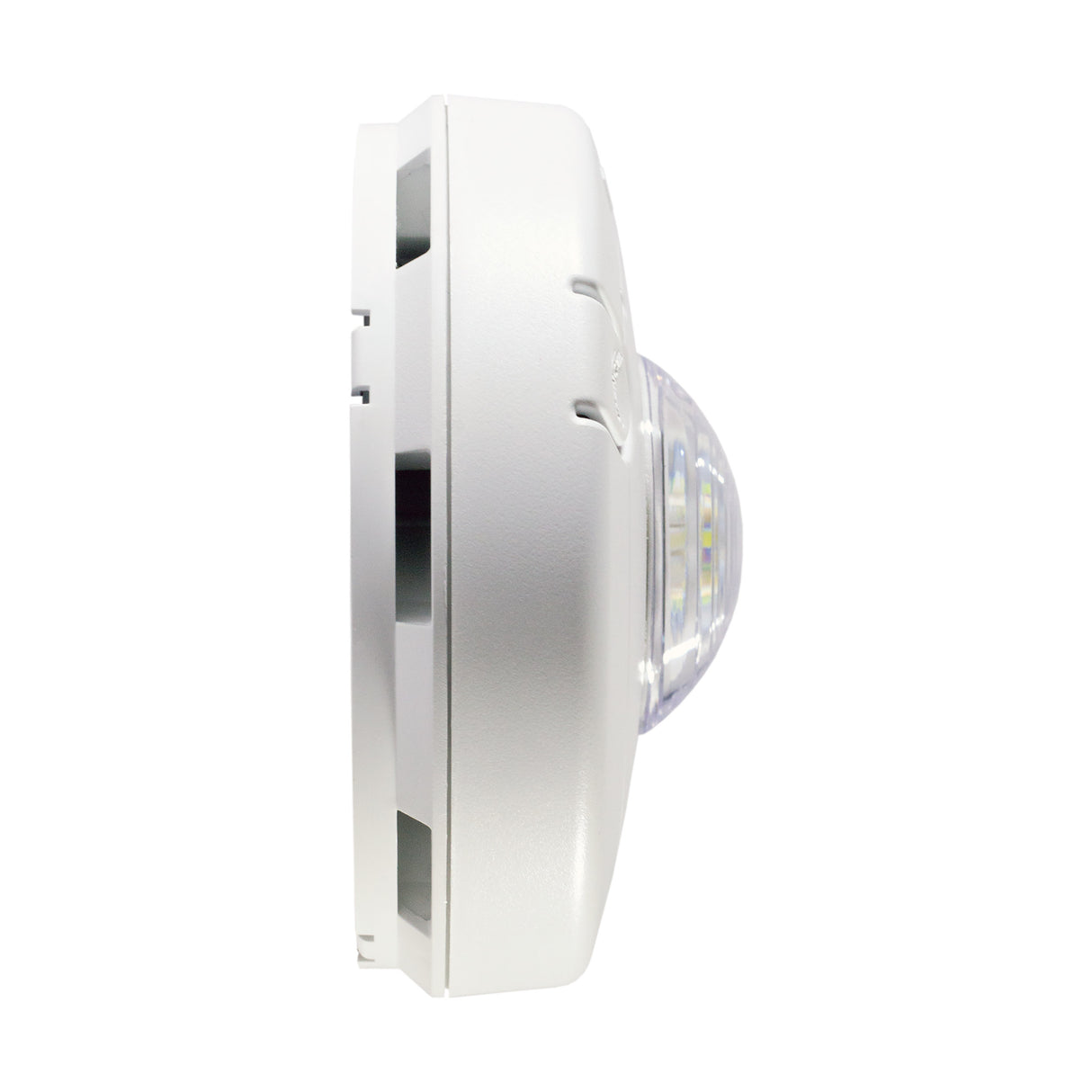

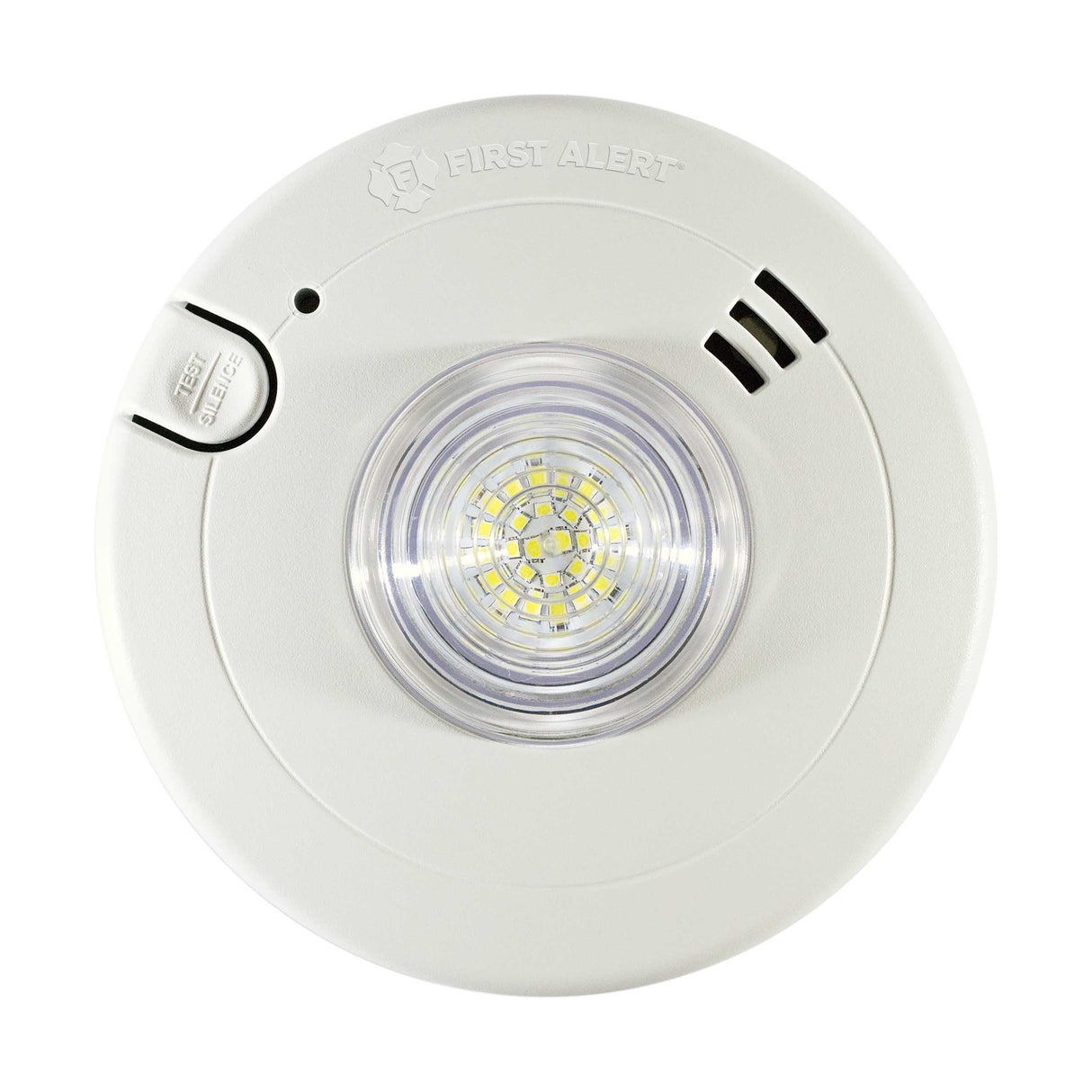

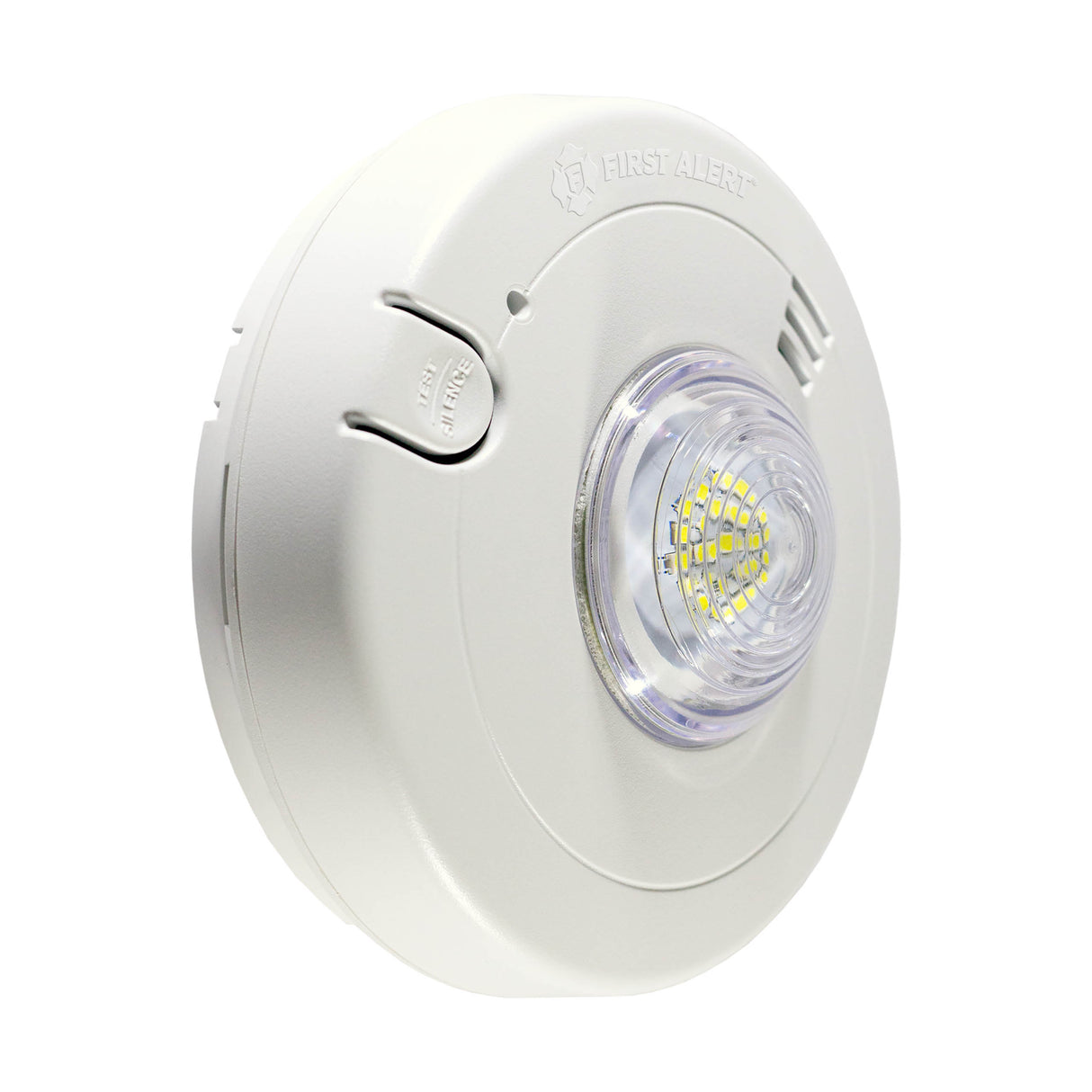

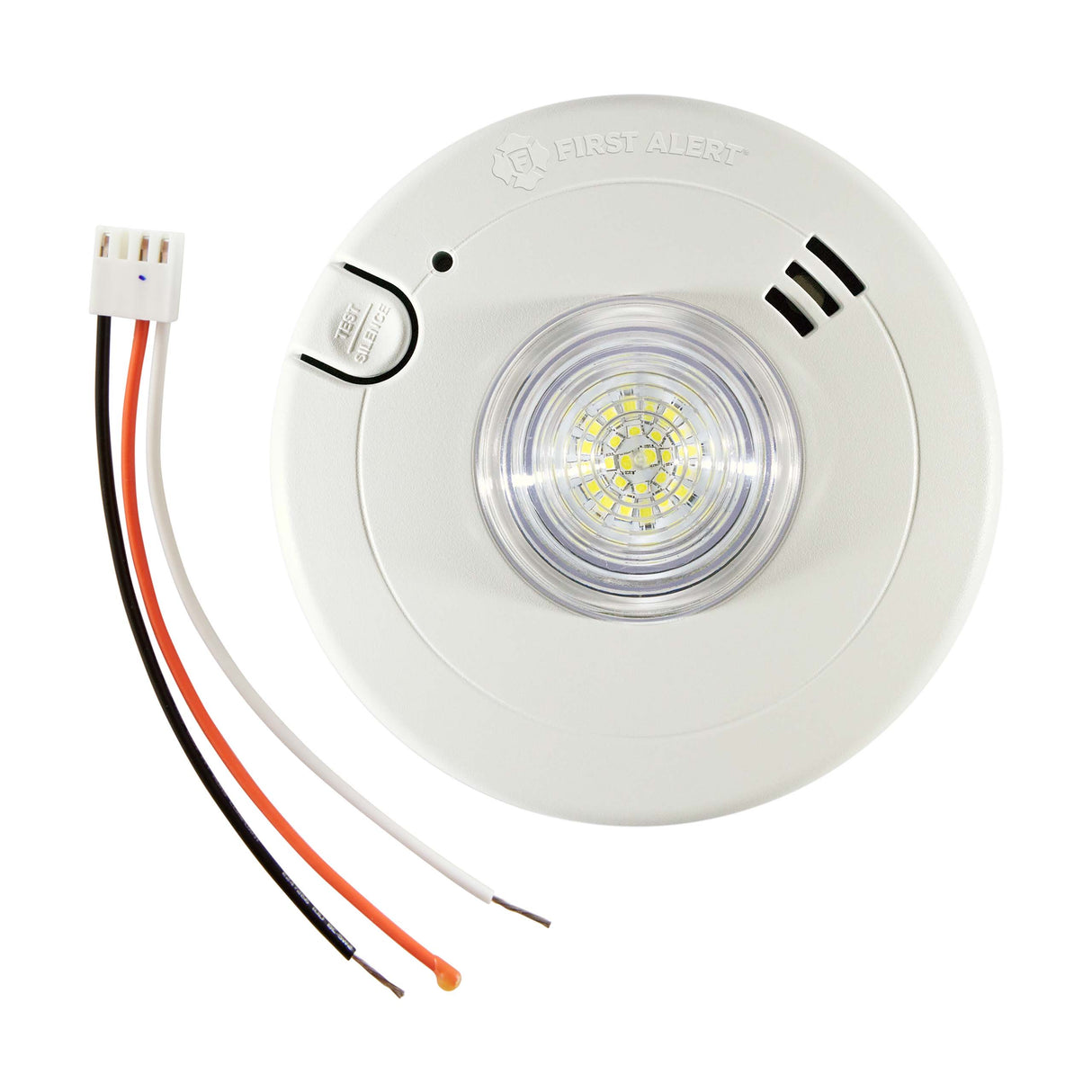

7020BSL 120V AC with 10-Year Sealed Lithium Battery Backup

SKU: 1038335

Hardwired smoke alarm with 10-Year sealed lithium battery backup. Includes 177 candela LED Strobe light. AC 120V Interconnectable with Silence and Latching features. Incluldes Photoelectric smoke sensing technology.
View Replacement Products
Brkelectronics

7020BSL 120V AC with 10-Year Sealed Lithium Battery Backup

SKU: 1038335

Resources

Sell (0)

File Name Date Posted Size
1038335-7020BSL Specification Sheet Jan 10, 2022 0.33 MB Download

Install (0)

File Name Date Posted Size
1038335-7020BSL User Manual May 10, 2022 1.64 MB Download
More Information on Ionization vs. Photoelectric Smoke Alarms Apr 07, 2023 - Download

Audio Files (0)

File Name Date Posted Size

Specifications

BRK Model
7020BSL
Replacement Model
SM110LED-AC
Type
Smoke Alarm
Sensor Type
Photoelectric
Sensor Information
Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
Sound Level
85dB at 10 feet
Product Height
5.48 in
Product Length
3.21 in
Product Weight
0.62 lb
Product Width
5.38 in
Power Source
Hardwired
Operating Voltage
120V AC 60Hz; w/3V Sealed Lithium Metal Battery
Hardwired Interconnectivity
Yes
Wireless Interconnectivity
No
Alert Type
Strobe
Battery Backup
Yes
Backup Battery Type
Sealed Lithium
Backup Battery Life
10 Years
Color
White
Includes
177 candela LED strobe light
Ambient Operating Temperature (Min)
40 °F; 4 °C
Ambient Operating Temperature (Max)
100 °F; 38 °C
Operating Relative Humidity (Min)
10% (RH)
Operating Relative Humidity (Max)
95% (RH)
UPC Case
60029054018016
UPC Number
029054018014
Warranty
10 Years Limited
Approvals and Standards
Listed to UL217 Standard

Product Overview

  • AC Powered with 10-Year Sealed Battery Backup
  • Integrated Smoke Alarm & Strobe Light - saves time & money! Requires only one junction box
  • Smart Strobe -Separate flash patterns to distinguish between smoke and carbon monoxide
  • 177 Candela Synchronized LED - Powerful LED strobe light provides effective visual warning intended to waken hearing impaired residents. When multiple units installed, strobes flash in unison
  • Slim design
