Alarms / Combo Smoke & Carbon Monoxide Alarms / 7030BSL BRK 120V AC Smoke & CO Alarm w/LED Strobe & 10-Year Sealed Lithium Battery Backup
Discontinued
1 7

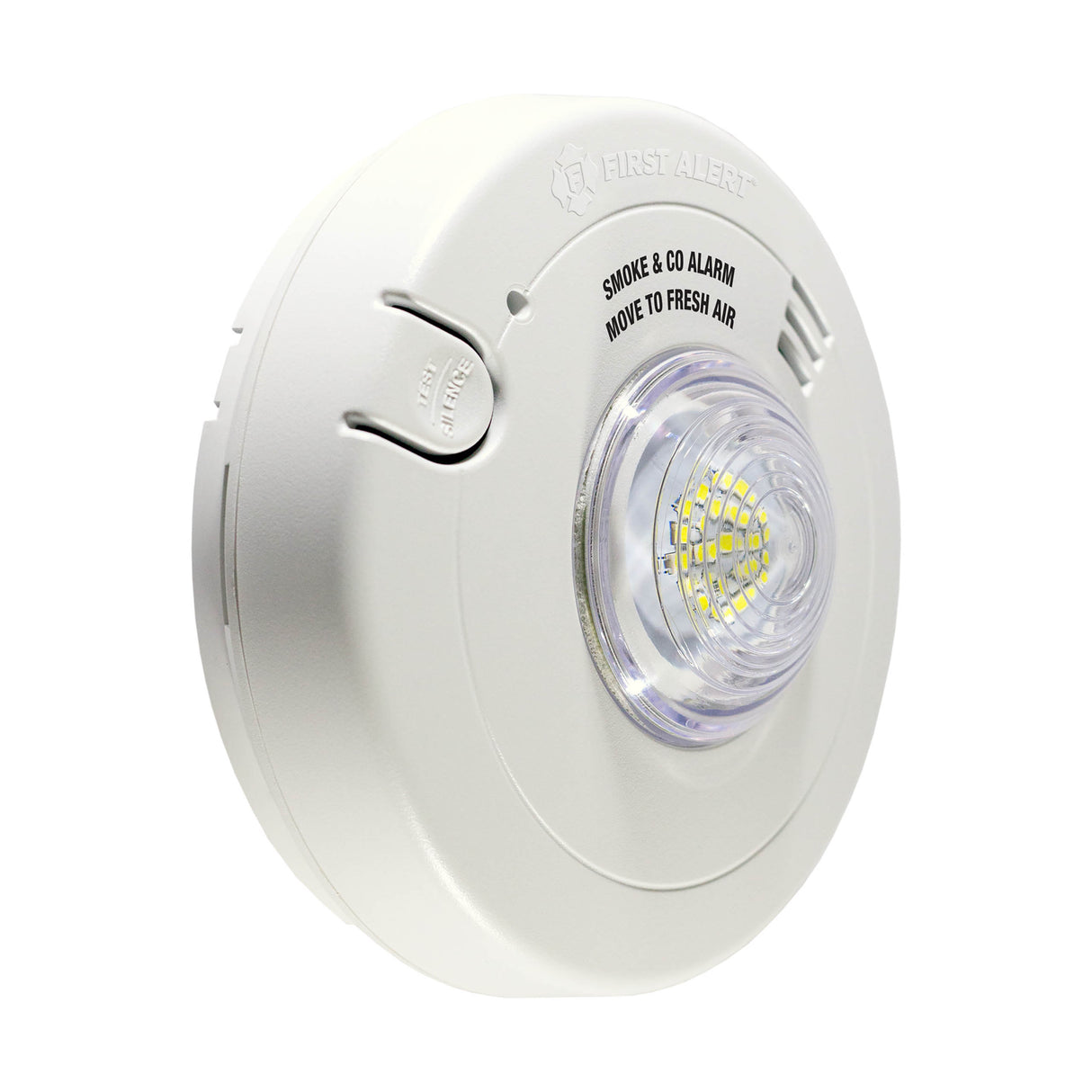

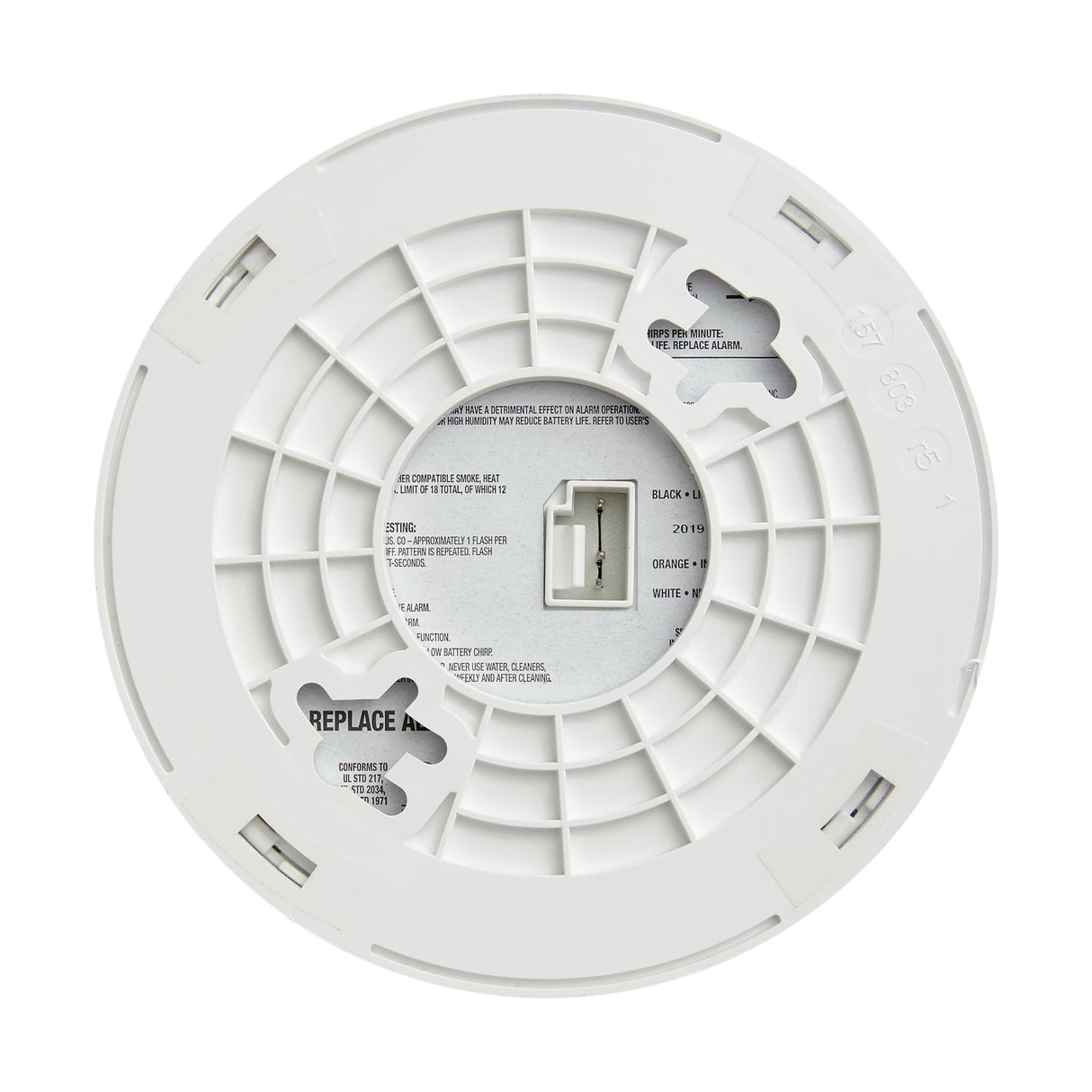

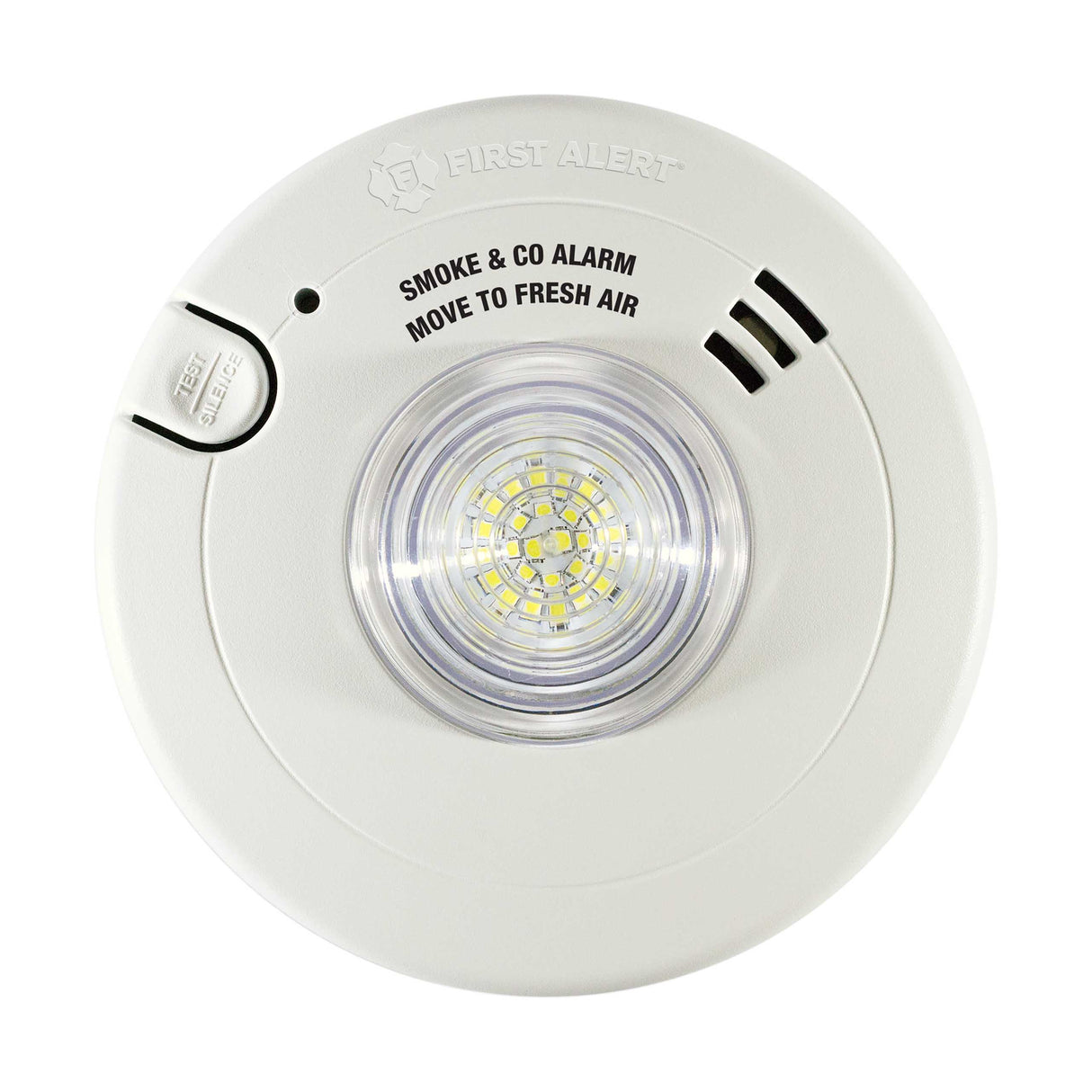

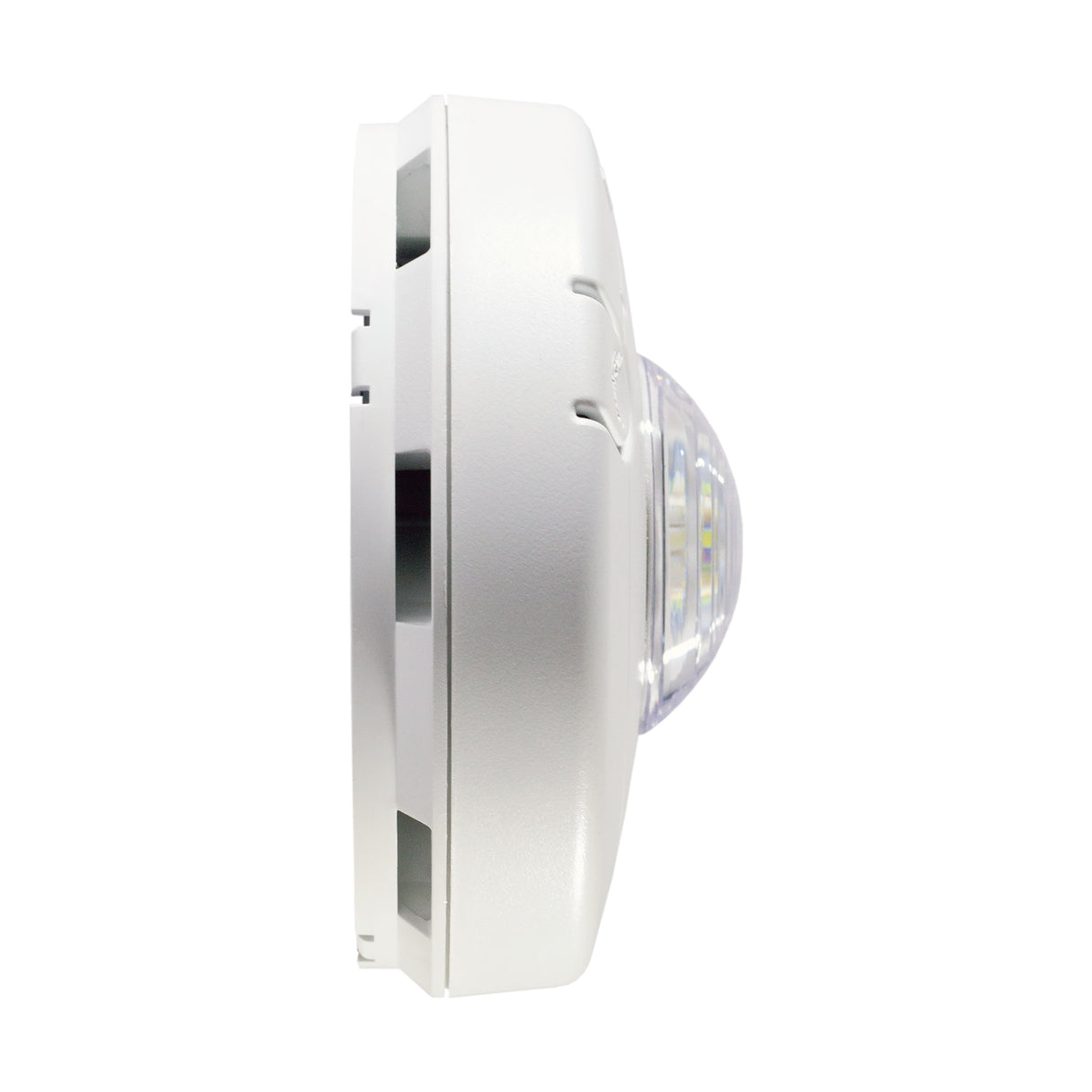

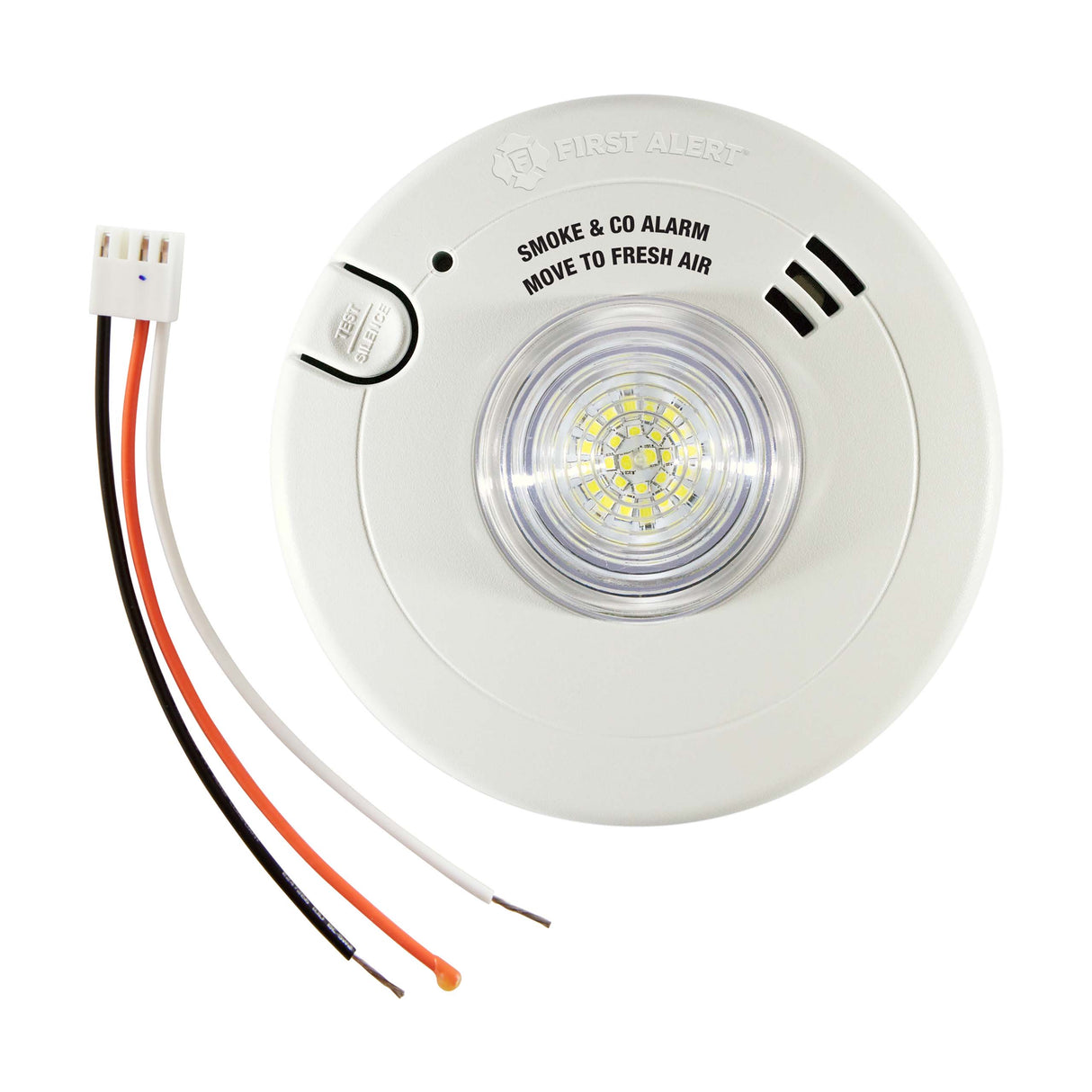

7030BSL BRK 120V AC Smoke & CO Alarm w/LED Strobe & 10-Year Sealed Lithium Battery Backup

SKU: 1038870

Hardwired Combo smoke & CO alarm with 10-Year sealed lithium battery backup. Includes 177 candela LED Strobe light. AC 120V Interconnectable with Silence and Latching features. Incluldes Photoelectric smoke sensing technology and electrochemical carbon monoxide sensor.

  • AC Powered with 10-Year Battery Backup
  • Integrated Combination Smoke & Carbon Monoxide Alarm & Strobe Light-saves installation times and costs!
  • Smart Strobe- Separate flash patterns to distinguish between smoke and carbon monoxide
  • 177 Candela Synchronized LED-Powerful LED strobe light provides effective visual warning intended to waken hearing impaired residents. When multiple units installed, strobes flash in unison
  • 1 HZ Flash Rate
  • Optipath 360 Technology â„¢- Provides 360 degrees of direct access to the smoke sensing chamber
View Replacement Products
Brkelectronics

7030BSL BRK 120V AC Smoke & CO Alarm w/LED Strobe & 10-Year Sealed Lithium Battery Backup

SKU: 1038870

Resources

Sell (0)

File Name Date Posted Size

Install (0)

File Name Date Posted Size
7030BSL User Manual Nov 10, 2022 1.85 MB Download
7030BSL-1038870 Specification Sheet Jan 10, 2022 0.32 MB Download
More Information on Ionization vs. Photoelectric Smoke Alarms Apr 07, 2023 - Download

Audio Files (0)

File Name Date Posted Size

Specifications

BRK Model
7030BSL
Replacement Model
SMCO110LED-AC
Type
Combination Smoke & Carbon Monoxide Alarm
Sensor Type
Photoelectric
Sensor Information
Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
Power Source
Hardwired
Current Type
AC; DC
Backup Battery Type
Lithium
Hardwired Interconnectivity
Yes
Alert Type
Strobe
Sound Level
85dB at 10 feet
Product Height
5.49 in
Product Length
0.87 in
Product Width
5.38 in
Product Weight
0.87 lb
Warranty
10 Years Limited
Features
Battery Backup
Ambient Operating Temperature (Min)
40 °F; 4 °C
Ambient Operating Temperature (Max)
100 °; 38 °C
Ambient Relative Humidity (Min)
10% (RH)
Ambient Relative Humidity (Max)
95% (RH)
Approvals and Standards
Listed to UL 217 Standard; Listed to UL2034 Standard; Listed to UL1638 Standard
UPC Case
60029054018139
UPC Number
029054018137
