Alarms / Combo Smoke & Carbon Monoxide Alarms / SC9120B BRK 120V AC/DC Smoke/CO Combo Alarm
Discontinued
1 7

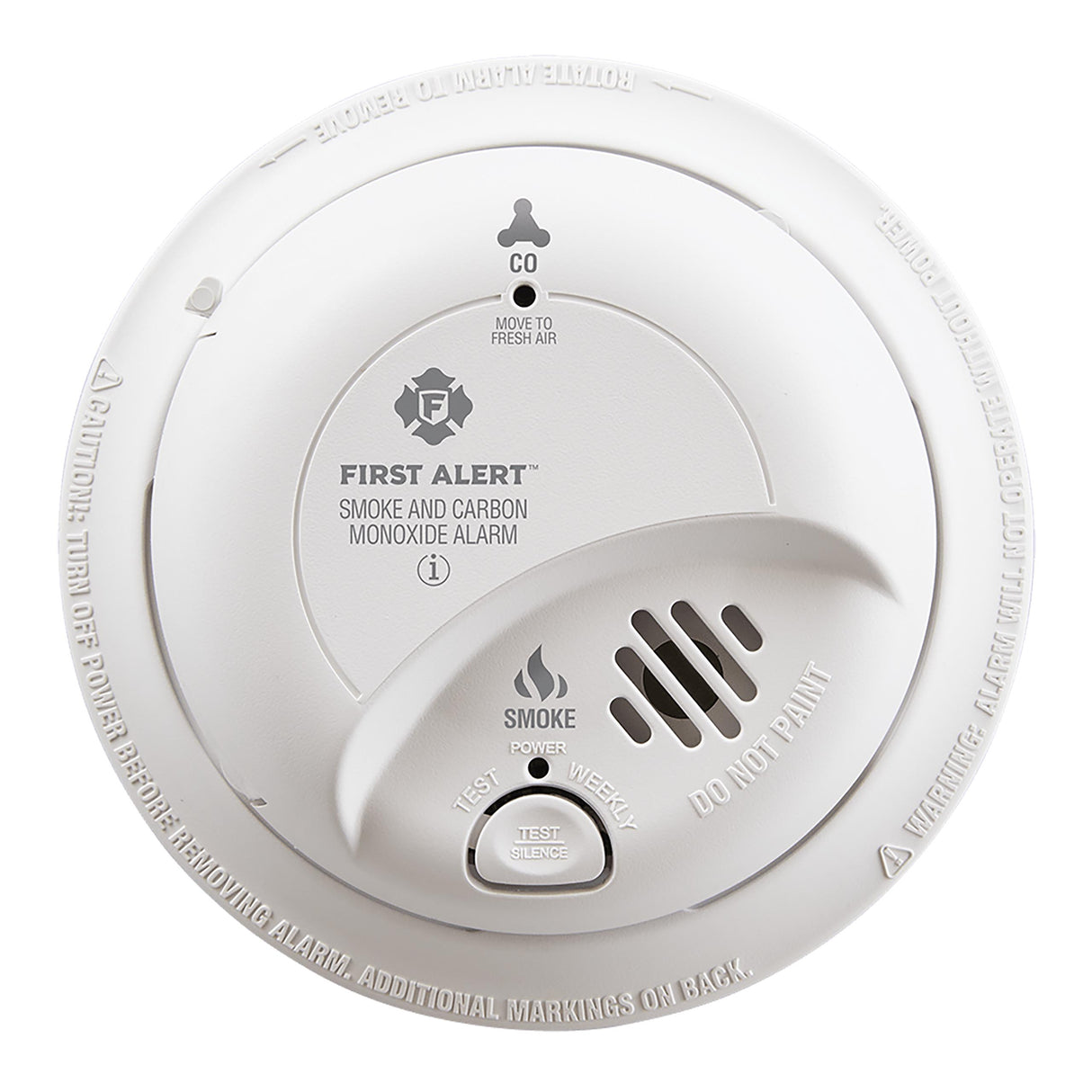

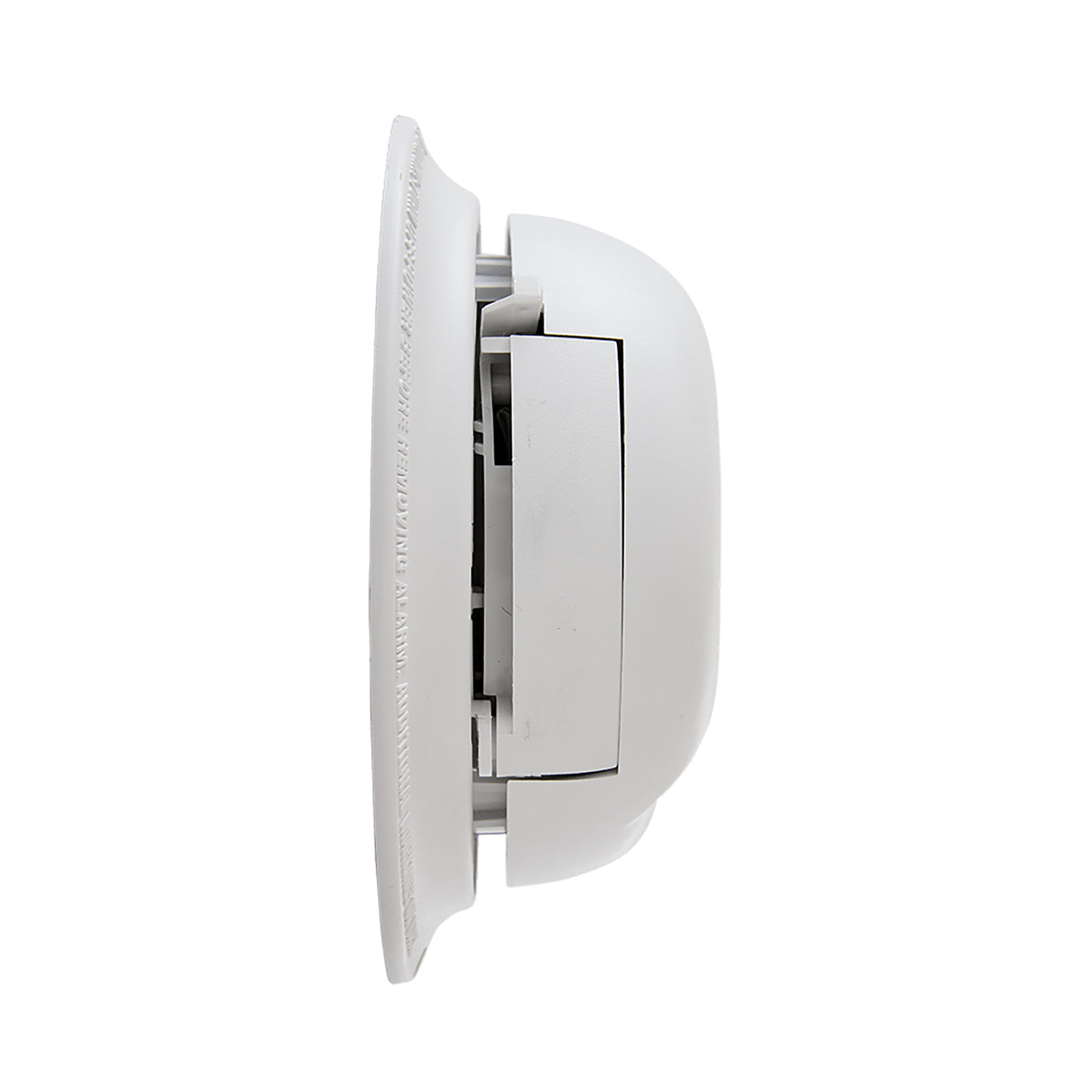

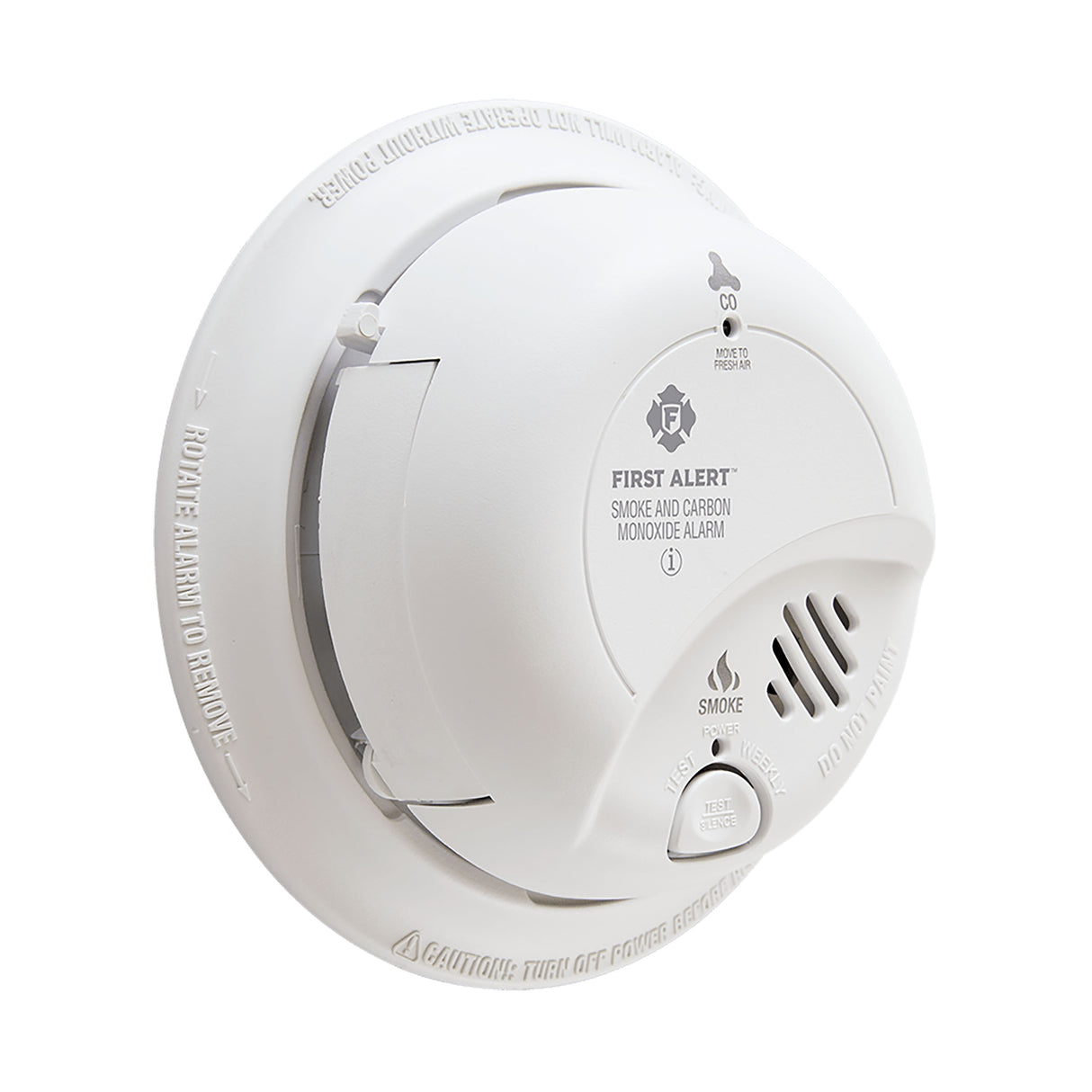

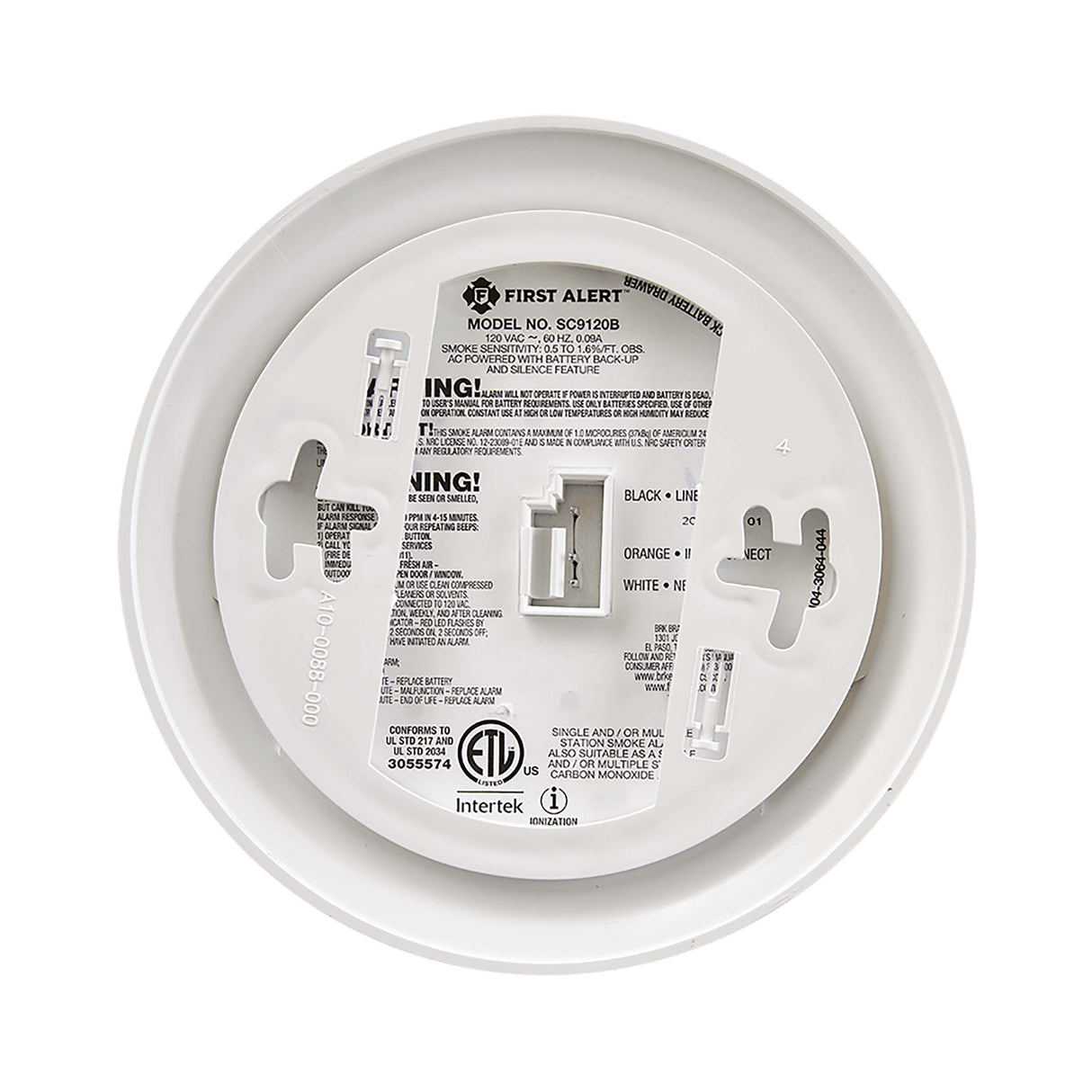

SC9120B BRK 120V AC/DC Smoke/CO Combo Alarm

SKU: SC9120B

Hardwired Combo smoke & CO Alarm with replaceable battery backup. AC 120V Interconnectable with Silence and Latching features. Includes Ionization smoke sensing technology, electrochemical carbon monoxide sensor and a 9V battery.

  • 10YR CO Sensor/10YR End of Life
  • Electrochemical Carbon Monoxide Sensor - the most accurate sensor available as compared to other sensing technologies
  • 9V Alkaline Battery Backup
  • Latching alarm indicator - remembers which unit initiated an alarm
  • Two silence features - can silence the low-battery chirp for up to eight hours or temporarily silence an unwanted nuisance alarm
  • End of Life Signal provides audible notification alarms needs to be replaced
View Replacement Products
Brkelectronics

SC9120B BRK 120V AC/DC Smoke/CO Combo Alarm

SKU: SC9120B

Resources

Sell (0)

File Name Date Posted Size
SC9120B CSFM Listing Card_CO Jan 10, 2022 0.16 MB Download
SC9120B CSFM Listing Card-Smoke Jan 10, 2022 0.16 MB Download
SC9120B ETL Listing Card Jan 10, 2022 0.09 MB Download
SC9120B Maryland Fire Marshall Listing Card Jan 10, 2022 0.05 MB Download

Install (0)

File Name Date Posted Size
User Manual for SC9120B Smoke and Carbon Monoxide Alarm (English) 04/25/2023 1.09 MB Download
User Manual for SC9120B Smoke and Carbon Monoxide Alarm (Spanish) 04/25/2023 1.2 MB Download
SC9120B Specification Sheet 04/25/2023 0.17 MB Download
More Information on Ionization vs. Photoelectric Smoke Alarms Mar 07, 2023 - Download

Audio Files (0)

File Name Date Posted Size

Specifications

BRK Model
SC9120B
Replacement Model
SMICO100-AC
Type
Combination Smoke & Carbon Monoxide Alarm
Sensor Type
Electrochemical; Ionization
Sensor Information
Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
Power Source
Hardwired

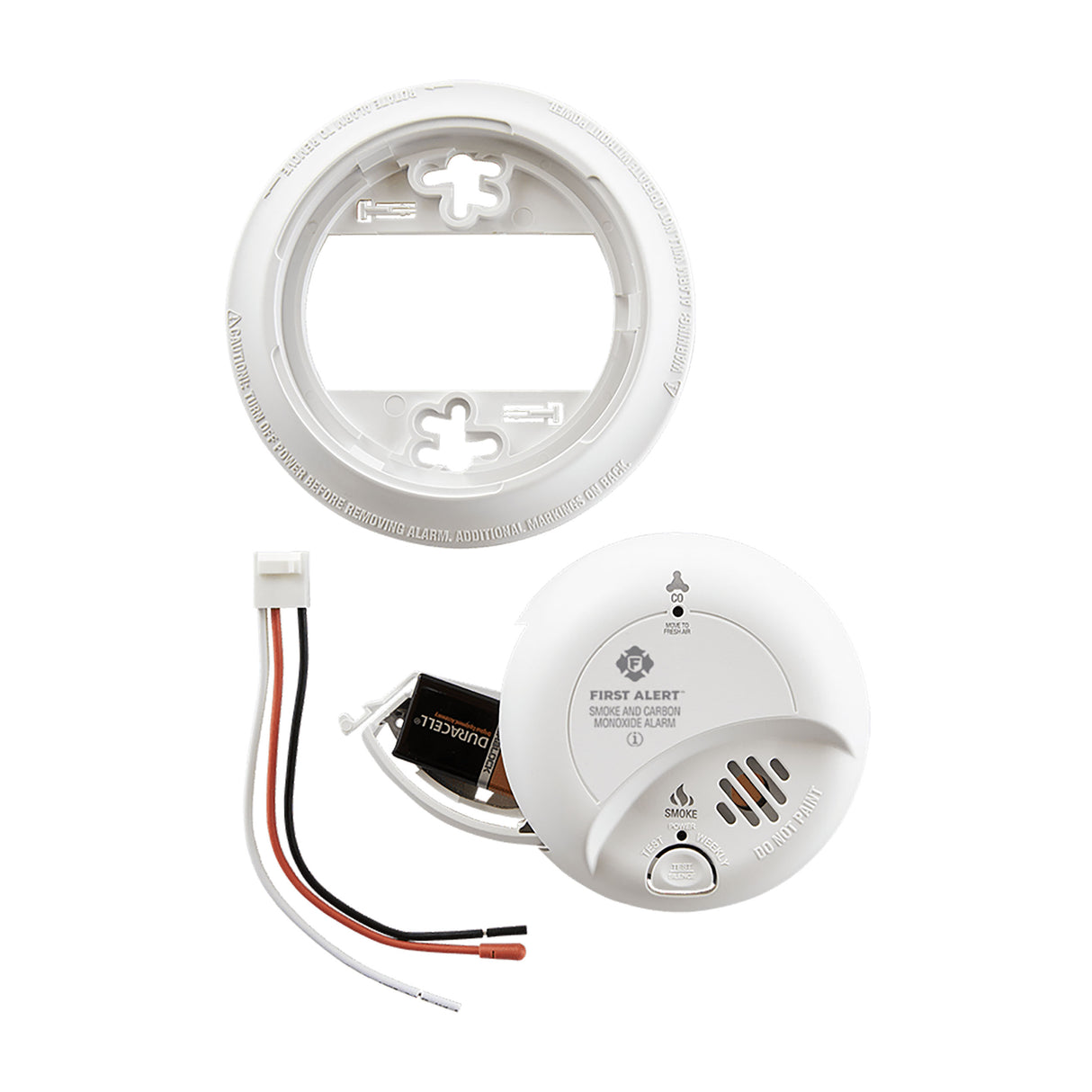

Includes
Hardwire Adaptor Plug
Battery Replaceable
Yes
Battery Backup
Yes
Backup Battery Type
Alkaline
Backup Battery Size
9V
Hardwired Interconnectivity
Yes
Sound Level
85dB at 10 feet
Product Height
1.9 in
Product Length
5.6 in
Product Width
5.6 in
Product Weight
0.7 lb
Warranty
10 Years Limited
Features
End-of-Life Warning; Battery Backup; Hardwire Quick Connect Plug Included
Ambient Operating Temperature (Min)
40 °F; 4 °C
Ambient Operating Temperature (Max)
100 °; 38 °C
Ambient Relative Humidity (Min)
10% (RH)
Ambient Relative Humidity (Max)
95% (RH)
Approvals and Standards
Listed to UL 217 Standard; Listed to UL2034 Standard
UPC Case
10029054513066
UPC Number
029054513069
