1038335 120V AC with 10-Year Sealed Lithium Battery Backup

SKU: 1038335

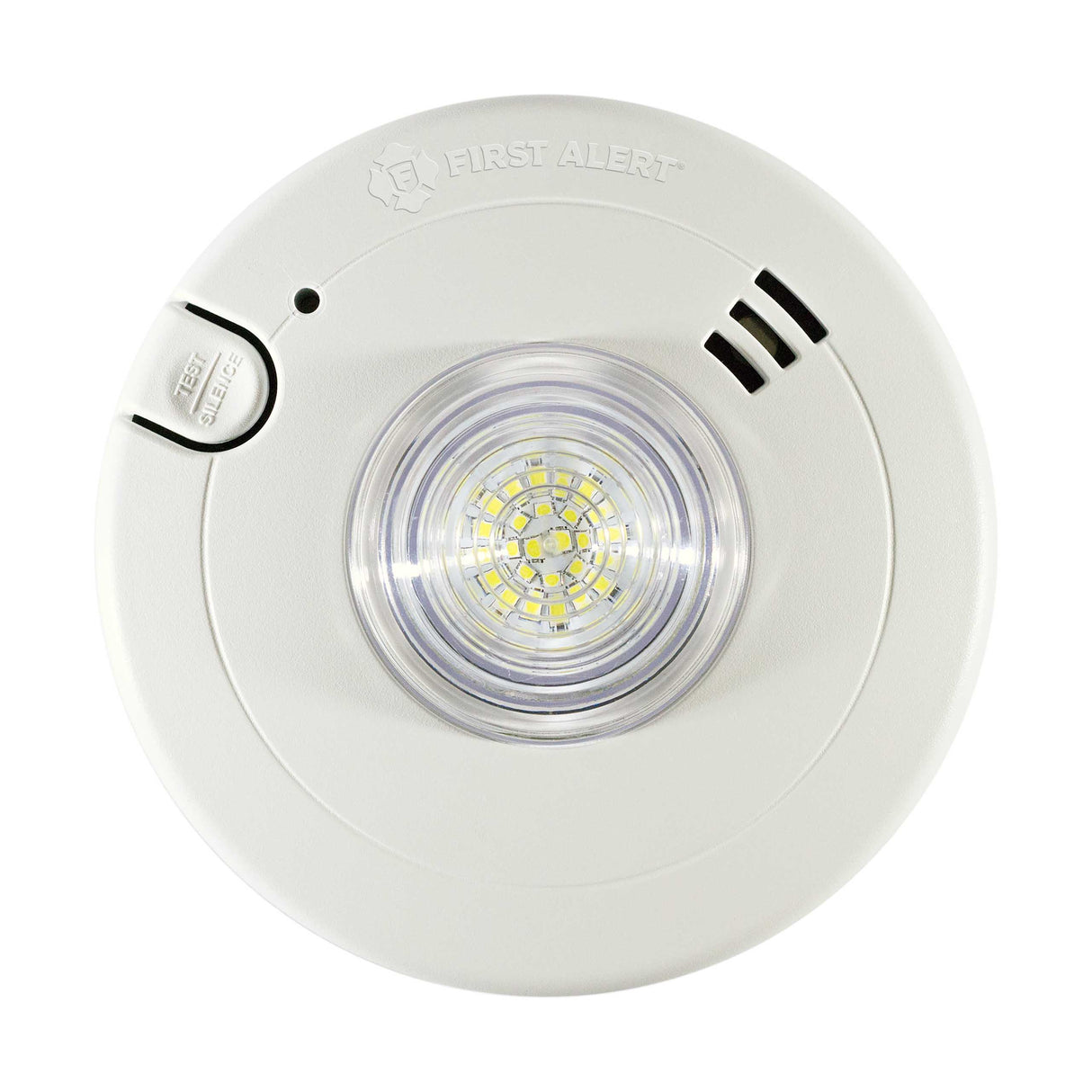

Front - Hardwired Hearing Impaired Smoke Alarm with LED Strobe Light - Photoelectric

Roll over image to zoom

Right click on thumbnail to save image

Carton - Hardwired Hearing Impaired Smoke Alarm with LED Strobe Light - Photoelectric

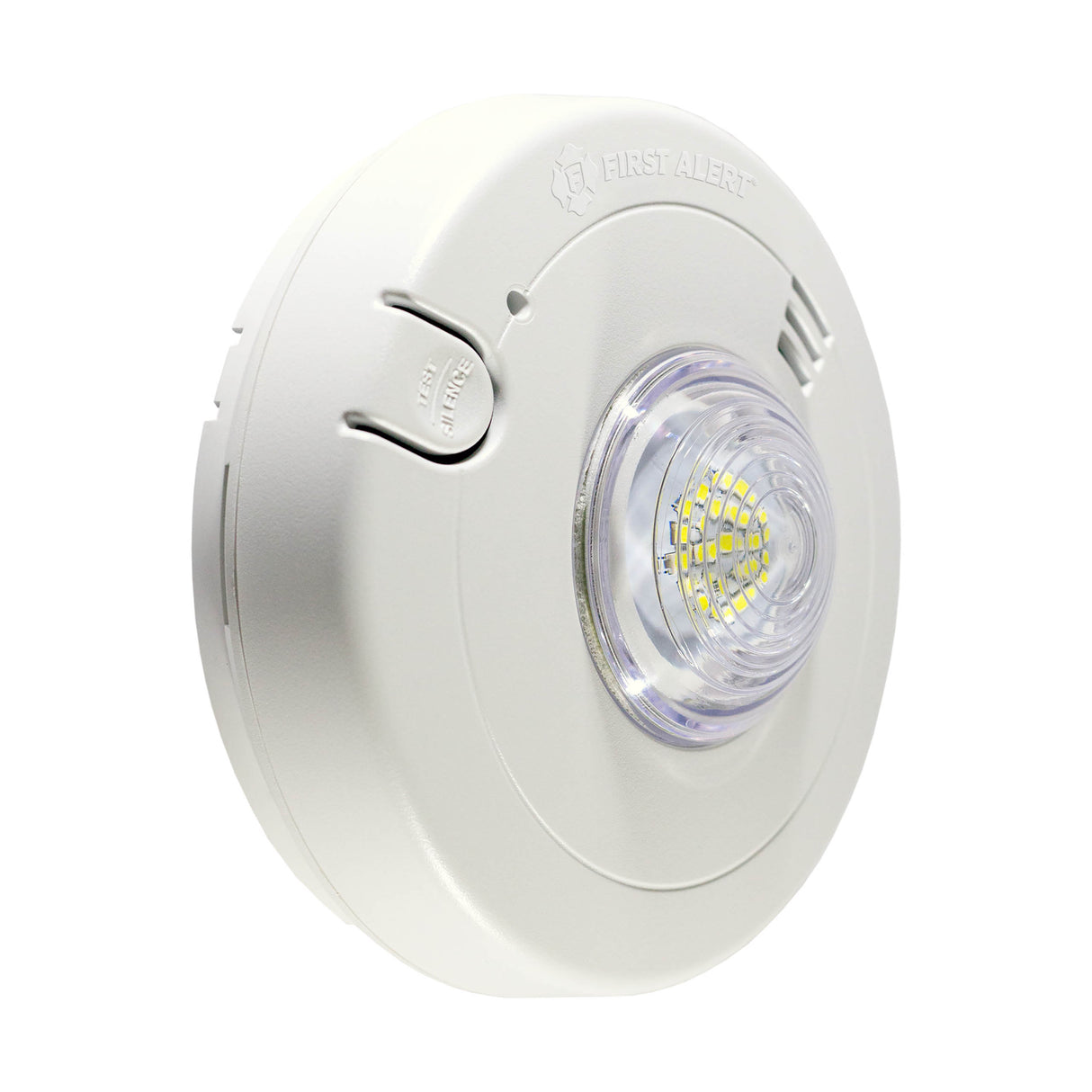

Angle - Hardwired Hearing Impaired Smoke Alarm with LED Strobe Light - Photoelectric

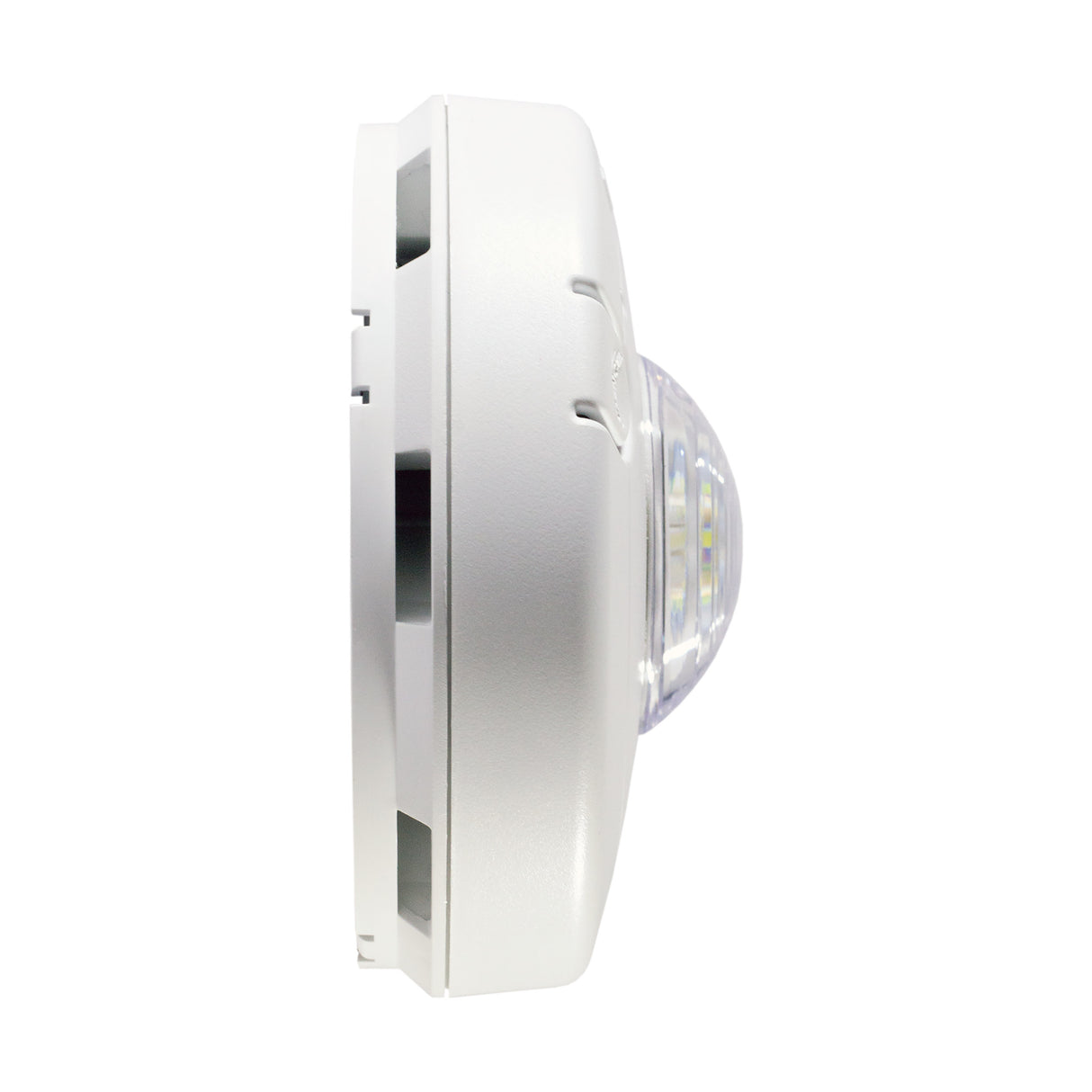

Side - Hardwired Hearing Impaired Smoke Alarm with LED Strobe Light - Photoelectric

1038335 120V AC with 10-Year Sealed Lithium Battery Backup

Name: 7020BSL - BRK Photoelectric hardwired smoke alarm w/10-Year sealed lithium battery backup | BRK
SKU: 1038335
Availability: InStock

SKU: 1038335

Hardwired smoke alarm with 10-Year sealed lithium battery backup. Includes 177 candela LED Strobe light. AC 120V Interconnectable with Silence and Latching features. Incluldes Photoelectric smoke sensing technology.

Select a Model:

Find a Rep

Resources


	1038335-7020BSL Specification Sheet	01/2021	0.3MB	Download
No Results found for


	1038335-7020BSL User Manual	11/2021	1.6MB	Download
	More Information on Ionization vs. Photoelectric Smoke Alarms	01/2023		Download
No Results found for

Specifications
BRK Model	7020BSL
Replacement Model	SM110LED-AC
Type	Smoke Alarm
Sensor Type	Photoelectric
Sensor Information	Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
Sound Level	85dB at 10 feet
Product Height	5.48 in
Product Length	3.21 in
Product Weight	0.62 lb
Product Width	5.38 in
Power Source	Hardwired
Operating Voltage	120V AC 60Hz, w/3V Sealed Lithium Metal Battery
Hardwired Interconnectivity	Yes
Wireless Interconnectivity	No
Alert Type	Strobe
Battery Backup	Yes
Backup Battery Type	Sealed Lithium
Backup Battery Life	10 Years
Color	White
Includes	177 candela LED strobe light
Ambient Operating Temperature (Min)	40 °F, 4 °C
Ambient Operating Temperature (Max)	100 °F, 38 °C
Operating Relative Humidity (Min)	10% (RH)
Operating Relative Humidity (Max)	95% (RH)
UPC Case	60029054018016
Warranty	10 Years Limited
Approvals and Standards	Listed to UL217 Standard

View All

Product Overview

AC Powered with 10-Year Sealed Battery Backup
Integrated Smoke Alarm & Strobe Light - saves time & money! Requires only one junction box
Smart Strobe -Separate flash patterns to distinguish between smoke and carbon monoxide
177 Candela Synchronized LED - Powerful LED strobe light provides effective visual warning intended to waken hearing impaired residents. When multiple units installed, strobes flash in unison
Slim design
